Electric lifter FPE 250 A

manualplatformV-shaped

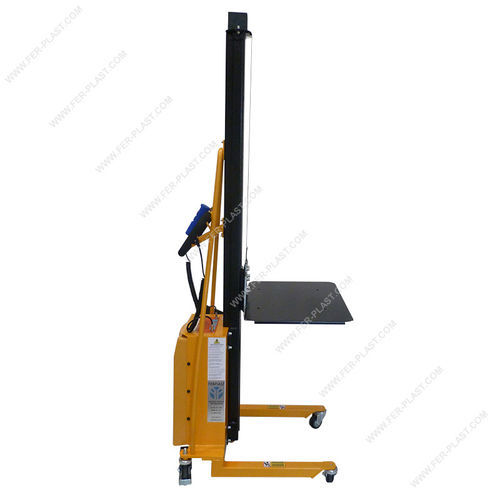

Battery Lifting Trolley Model FPE 250 A - Max. Load 250 Kg Practical and handy with manual traction and electric lifting, the FPE 250 A allows lifting loads up to 250 kg to a height of 1800 mm. Its compact size and limited weight make it suitable for use in warehouses, laboratories, offices, kitchens, shops, etc. The 24 V-20 Ah maintenance-free battery, combined with a robust motor and control electronics with overload protection, ensures safe and reliable operation. The charger is integrated. To guarantee maximum safety, the lifting system is equipped with a fall arrest belt. Model: FPE 250 A Load: 250 kg Maximum lifting height: 1800 mm Minimum lifting height: 130 mm Platform dimensions: 470 x 600 mm Lifting speed: about 28 sec per stroke at 1800 mm (65 mm/sec) Machine dimensions: 860 x 600 x 2100 mm (h) Front support length: 520 mm External width: 570 mm Internal support width: 470 mm Distance between supports: 460 mm Frame height with wheels: 120 mm Front wheels diameter: 75 mm Steering wheels diameter: 125 mm Weight: 99 kg Battery: 24 V – 20 Ah The standard version is equipped with tubular forks on which a 470x600 mm sheet metal top is fixed. Accessories: • Lowered frame with special supports for insertion under EPAL pallets • Optional A WP-A03 for lifting and rotating coils • Optional B-1 WP-A04 V-shaped platform for coils - parallel • Optional B-2 WP-A05 V-shaped platform for reels - perpendicular • Optional C WP-A01 - Reel holder shaft • Optional D WP-Roller, roller table • Optional E WP-A02 Rollers shaft with wheels with safety stop • Optional F WP-Roller 80, roller table - with width 800 mm • Double fixed reel holder pin • Nylon plan with straps • Lithium batteries with specific charger Attention: The standard colors are blue or yellow. Delivery will take place according to availability. The height of 1800 mm is with the load plan mounted. If mounting another accessory (e.g., the reels turner), the lifting height may vary and be less.
