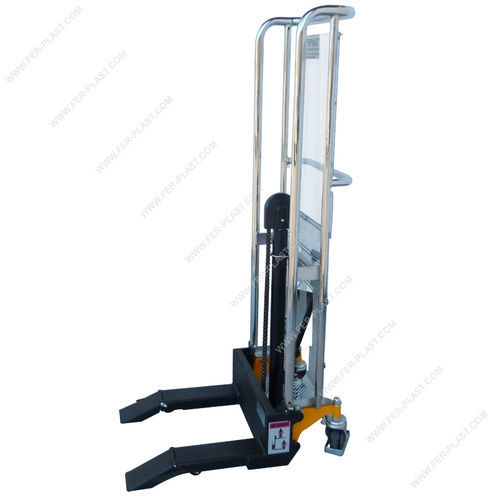

Manual lifter FP PS 04 B

hydraulicforktilting

Manual Box and Coil Lifter FP PS 04 B with Locking System Compact and easy-to-handle manual lift equipped with a hydraulic pedal pump and large-diameter polyurethane wheels for high smoothness. The lifting pedal can be positioned vertically to reduce the footprint and the descent is controlled by a valve with handwheel. The FP PS 04 B comes with the tip of the tilting and folding forks. The forks, when tilted outwards, facilitate the loading and unloading of the coils. When the coils or boxes have been loaded onto the lift, you can close the tip of the forks and create a safety lock. This front lock prevents boxes or reels from rolling forward and falling. MODEL: FP PS 04 B Load (Kg): 150 Maximum lifting height (mm): 1200 Maximum roll diameter (mm): 300 Maximum roll length (mm): 1800 External forks width (mm): 550 Distance between forks (mm): 350 Single fork width (mm): 100 Wheel type: 2 front swivel + 2 rear swivel with brake Weight (Kg): 80 The lift is by pedal. At each pump the forks are raised by about 3 cm. The descent takes place by opening the handwheel valve on the right of the pedal. Controlled descent and safe speed. The load shall be evenly distributed over the forks. As with all lifting equipment, care must be taken with the safety diagram. Depending on the size and characteristics of the lift, the flow rate decreases as the height or distance from the centre of gravity increases. All models are CE certified and come with specific user and maintenance manual. - Manual lifter with tilting and folding forks - Load capacity: 150 Kg - Lifting height: 1200 mm - Maximum roll diameter: 300 mm - Maximum roll length: 1800 mm - External forks width: 550 mm - Distance between forks: 350 mm - Single fork width: 100 mm - Wheel type: 2 front swivel + 2 rear swivel with brake - Weight: 80 Kg - Hydraulic pedal pump - Large-diameter polyurethane wheels - Front safety lock for boxes/reels - CE certified
