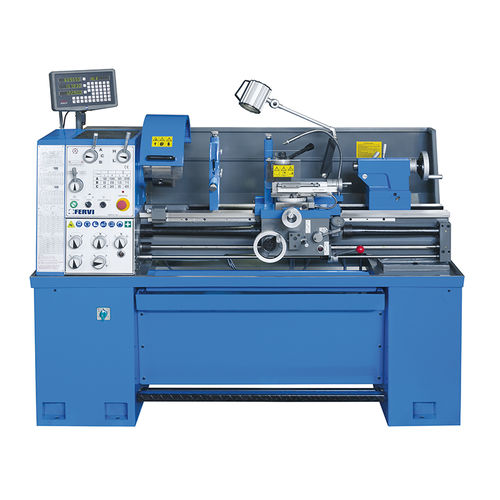

CNC lathe T070/400V3A

horizontal3-axisfor metal

WITH 2 SPEED MOTOR AND 3 AXIS READ OUT, SEMI NORTON GEAR BOX. TURNING BAR WITH ADJUSTABLE CLUTCH. Centers height 200 mm Max swing over the bed 400 mm Max swing over the cross slide 258 mm Max swing over the gap 550 mm Tool height 20 mm Distance between centers 1000 mm Spindle bore 55 mm Spindle bore 50 mm Spindle nose Camlock Camlock D1-5 Spindle bore taper MT 6 Spindle speed (12) 45 ÷ 2000 rpm Longitudinal feeds 0,06 ÷ 2,78 mm/rev Cross feeds 0,01 ÷ 0,72 mm/rev Metric threads 0,8 ÷ 14 mm Inch threads 2 ÷ 28 TPI Tailstock taper MT 4 Motor 400V 50 Hz 1,5 / 2,4 kW Dimensions 1860 x 800 x 1600 h mm Net weight 760 kg Packaging dimensions 1930 x 760 x 1600h mm Gross weight 815,00 kg
