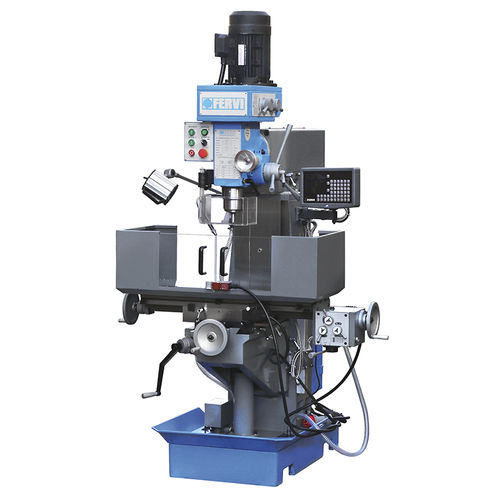

3-axis milling machine F050

verticaldrillingwith linear motor

VERTICAL MILLING MACHINE, ISO40, MOTORIZED ONE AXIS CROSS TABLE, 3 AXIS READ OUT Face milling cutter max 100 mm End milling cutter max 32 mm Max drilling capacity on cast iron with pre-drilling hole 50 mm Max drilling capacity on steel with pre-drilling hole(s235jr) 30 mm Spindle taper ISO40 DIN2080 Quill 90 mm Spindle travel 120 mm Vertical head rotation ± 45° Head body rotation ± 180° Variable spindle speed (8) 115 ÷ 1750 rpm Motor 400 V 50 Hz 0,85 - 1,5 kW Table movement motor 400V 50Hz 0.325 KW Base dimensions 510 x 900 mm Cooling pump 400V 50 Hz 0.4 KW Distance between spindle nose and table 60 - 360 mm Distance spindle axis - column surface 250 - 650 mm Table dimensions 800 x 240 mm Longitudinal axis 380 mm Cross axis 220 mm Slot 14 mm Maximum capacity 300 kg Dimensions 1380 x 1200 x 2100
