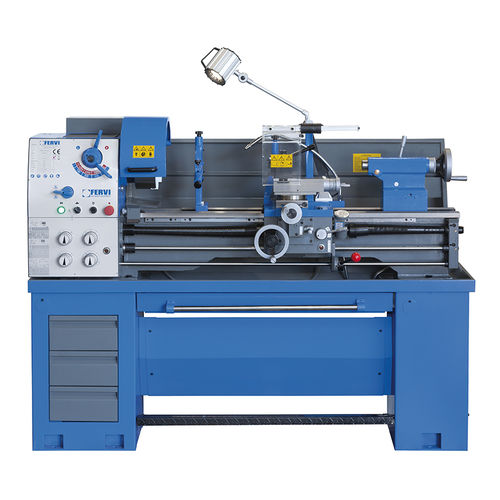

Manually-controlled lathe T069/400V
horizontal3-axisfor metal

manually-controlled lathe
manually-controlled lathe
manually-controlled lathe
manually-controlled lathe
manually-controlled lathe
manually-controlled lathe
Add to favorites
Compare this product


Characteristics

Control type
manually-controlled
Spindle orientation
horizontal
Number of axes
3-axis
Applications
for metal
Other characteristics
spindle
Diameter

320 mm
(12.6 in)

Spindle speed

Max.: 2,000 rpm
(12,566.371 rad.min-1)

Min.: 70 rpm
(439.823 rad.min-1)

Description

WITH SEMI NORTON GEAR BOX. TURNING BAR WITH ADJUSTABLE CLUTCH. Centers height 190 mm Max swing over the bed 380 mm Max swing over the cross slide 225 mm Max swing over the gap 503 mm Tool height 20 mm Distance between centers 1000 mm Spindle bore 51 mm Spindle nose Camlock Camlock D1-5 Spindle bore taper MT 6 Spindle speed 70 ÷ 2000 rpm Longitudinal feeds 0,052 ÷ 1,392 mm/rev Cross feeds 0,014 ÷ 0,380 mm/rev Metric threads 0,4 ÷ 7 mm Inch threads 4 ÷ 56 TPI Tailstock taper MT 4 Motor 400V 50 Hz 1,5 kW Dimensions 1820 x 800 x 1320 h mm Net weight 630 kg Packaging dimensions 1930 x 760 x 1600h mm Gross weight 633,00 kg
