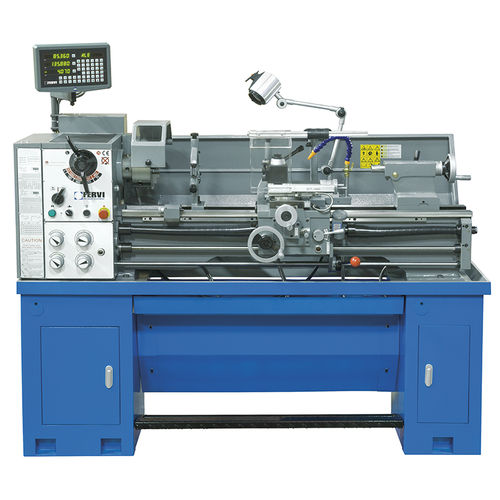

Conventional lathe T998/400V3Ahorizontal3-axisCamlock D1-5
Add to favorites
Compare this product
Characteristics
- Control type
- conventional
- Spindle orientation
- horizontal
- Number of axes
- 3-axis
- Spindle mount
- Camlock D1-5
- Applications
- for metal
- Diameter
320 mm
(12.6 in)- Spindle speed
Min.: 70 rpm
(439.823 rad.min-1)Max.: 2,000 rpm
(12,566.371 rad.min-1)- Nominal power
1.5 kW
(2 hp)- Overall lenght
1,930 mm
(76 in)- Overall width
760 mm
(30 in)- Overall height
1,600 mm
(63 in)- Weight
630 kg
(1,389 lb)
Description
3 AXIS READ OUT, SEMI NORTON GEAR BOX. TURNING BAR WITH ADJUSTABLE CLUTCH.
3+3 jaw self centering chuck Ø 200 mm
4 Reversible indipendent jaws chuck Ø 200 mm
Reduction sleeve MT 6/4
Face plate Ø 320 mm
Follow rest
Steady rest
Dead center MT 3
Dead center MT 4
Live center MT 3
Foot brake
Thread dial
Leadscrew hood
Turret protection
Chuck safeguard
Full length splash guard
TOAE quick change tool post
Working lamp
Cooling system
Clutch on turning bar
Quick locking tailstock carriage
Wagon gears in oil bath
