Pneumatic cylinder CYLA.12.100.0080double-actingaluminumISO 15552
Add to favorites
Compare this product
Characteristics
- Type
- pneumatic
- Configuration
- double-acting
- Material
- aluminum
- Norms
- ISO 15552
- Other characteristics
- standard
- Stroke
80 mm
(3.15 in)- Bore
100 mm
(3.94 in)- Pressure
10 bar, 12 bar
(145.04 psi, 174.05 psi)- Operating Temperature
Max.: 80 °C
(176 °F)Min.: -10 °C
(14 °F)
Description

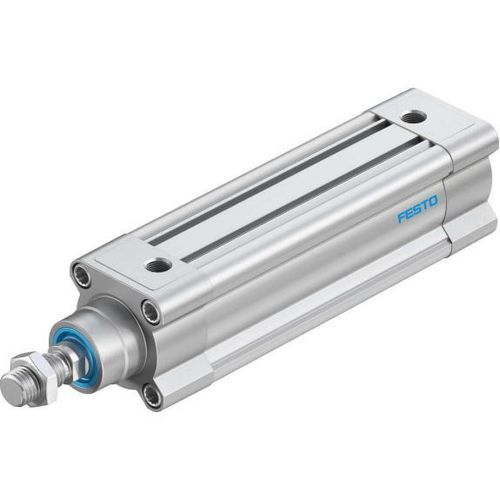

Profiled aluminum cylinder ISO 15552, double acting, CYLA.12.100.0080 by Festo.
- Standard: ISO 15552
- Material: Aluminum profile
- Operation: Double acting
- Rod: Steel
- Bore: 100 mm
- Stroke: 80 mm
- Max pressure: 10 bar
Technical Specifications / Features:
- Standard: ISO 15552
- Material: Aluminum profile
- Operation: Double acting
- Rod material: Steel
- Bore: 100 mm
- Stroke: 80 mm
- Max pressure: 10 bar
