metal cutting machine / plasma / oxy-fuel / sheet
TIPO A series

Add to MyDirectIndustry favorites
Compare this product

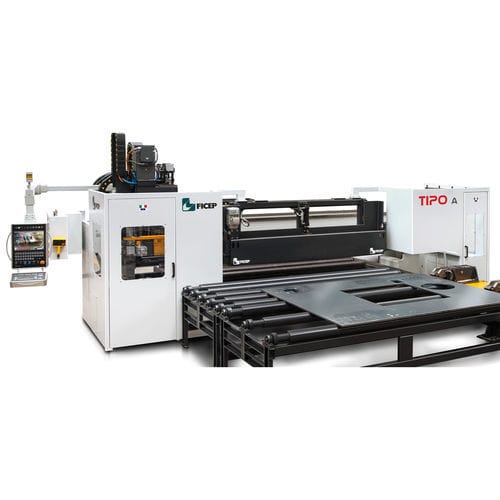

metal cutting machine / plasma / oxy-fuel / sheet metal cutting machine / plasma / oxy-fuel / sheet - TIPO A series
{{requestButtons}}

Characteristics

  • Material:

    for metal

  • Technology:

    plasma, oxy-fuel

  • Product handled:

    sheet

  • Control type:

    CNC

  • Associated function:

    marking, hole punch, drilling, milling, tapping

  • Applications:

    for steel construction

  • Other characteristics:

    automatic, precision

Description

DRILLING AND CUTTING OF METAL PLATES
TIPO A working centers can automatically carry out in one cycle the main operations required in the steel construction industry such as drilling, milling, pointing, tapping, marking and cutting, processing the largest plates available on the market without thickness limits.
Thanks to its features and its reliability, TIPO A has long been highly appreciated on the market.

FEATURES:

DRILLING UNIT

The high speed spindle allows extremely productive drilling of holes.

TOOL CHANGER

The automatic tool change system is managed by the CNC and is equipped with 6 positions, with possibility to add a second tool-changer.

SECOND DRILLING UNIT

The system can be equipped with an additional drilling spindle with relevant tool-changer to increase the productivity.

OXY TORCH

TIPO A is fitted with one oxycutting torch, with possibility to have a second torch to cover all manufacturing needs.

ADVANTAGES
•High speed drilling due to the ball screw spindle feed and the ability to utilize carbide tools.
•One rack and pinion measuring system for all operations guarantees accuracy between operations.
•Powerful nesting software for material and processing optimization.
•Reduced overall dimensions and easy material handling.
•Unloading the finished parts while the system is processing.
•Remote diagnosis is possible through a network connection that allows our service team to perform routine checks.
