steel cutting machine / plasma / oxy-fuel / sheet
GEMINI series

Add to MyDirectIndustry favorites
Compare this product

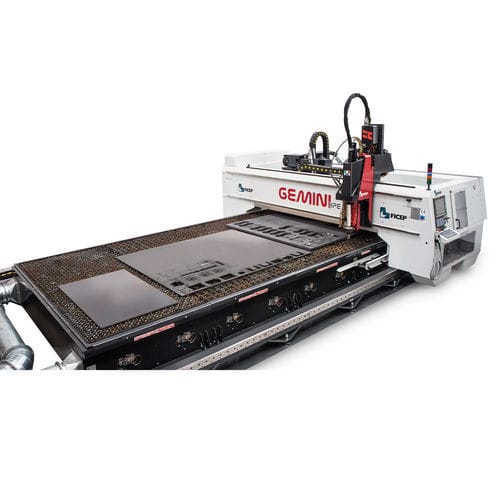

steel cutting machine / plasma / oxy-fuel / sheet steel cutting machine / plasma / oxy-fuel / sheet - GEMINI series
{{requestButtons}}

Characteristics

  • Material:

    for steel

  • Technology:

    plasma, oxy-fuel

  • Product handled:

    sheet

  • Control type:

    CNC

  • Associated function:

    marking, drilling, chamfering, milling, tapping

  • Applications:

    for steel construction

  • Other characteristics:

    automatic, high-speed, precision, gantry type

Description

DRILLING AND CUTTING OF STEEL SHEETS
The Gemini is the complete plate processor solution for fabricators and manufacturers of all sizes. It handles from light to heavy plates for thermal cutting, marking, drilling, tapping, milling, bevelling and more, with unprecedented productivity and accuracy. This achieves the lowest part cost due to its minimal floor space, low capital investment and productivity.

FEATURES:

DRILLING UNIT

The high speed machining spindle allows extremely productive drilling of holes from 5 to 80mm. For larger holes up to 400mm the Gemini can mill holes with exceptional accuracy on diameter and concentricity.

TOOL CHANGER

Automatic tool change systems, managed by the CNC, having 8, 16 or 24 positions allow to equip the line with all the necessary tools.

OXY TORCHES

Gemini systems can be equipped with up to three oxy cutting torches to cover all manufacturing needs.

ADVANTAGES
•Simple floor mounted installation without need for special foundations.
•Multiple integrated plate clamps rapidly adjust to the plate thickness to reduce the clamping cycle. The clamps rigidly secure the plate to the material bed to eliminate vibration and extend tool life even during aggressive machining.
•Precision laser for plate referencing that automatically rotates the plate nesting program to eliminate the need to square plates prior to processing
•Remote diagnosis is possible through a network connection that allows our service team to perform routine checks.
