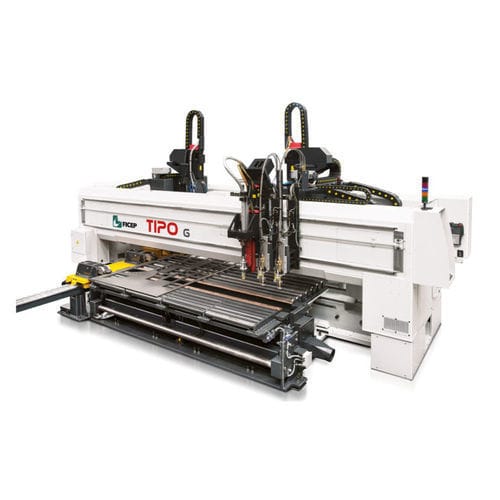

Oxy-fuel cutting machine TIPO G series

plasmafor steelsheet

Automatic CNC drilling, milling and thermal cutting system for large plates The new TIPO G product line combines the advantages of gantry style plate processors where the plate is stationary with that of systems where the plate is positioned for each operation. The TIPO G features sub-axis spindle positioning so it is not always necessary to unclamp, position a gantry or material and re-clamp the material for each spindle operation. The system integrates thermal cutting (straight and bevel), drilling, milling, scribing, countersinking and more with industry leading accuracy. DRILLING UNIT The high speed machining spindle allows extremely productive drilling of holes up to 60mm (2-3/8”). For larger holes up to 400mm (15-3/4”) the TIPO G, with sub axis spindle positioning, can mill holes with exceptional accuracy on diameter and concentricity. TOOL CHANGER The automatic tool change system is managed by the CNC and is equipped with 24 positions. SECOND DRILLING UNIT The system can be equipped with an additional drilling spindle with a second 24 positions tool-changer to increase the productivity. ADVANCED MILLING Dedicated software upgrades allow special milling operations such us straight slots, special curve slots, countersinking, “Y” and “J” groove, and other special cycles.
