Characteristics

  • Control:

    automatic

  • Drive type:

    hydraulic

  • Product handled:

    plate

  • Associated function:

    drilling, marking, welding

  • Other characteristics:

    high-speed

  • Pressing force:

    800 kN, 1,100 kN

Description

PUNCHING AND DRILLING OF METAL PLATES

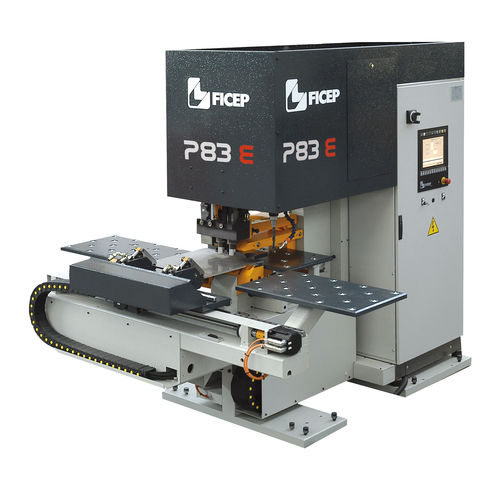

The P lines series includes automatic punching and drilling lines for plates up to 80mm thick. These compact lines are made of a sturdy C-frame which guarantees processing accuracy and long term reliability. The punching line model can also perform drilling and marking operations. The high speed drilling line model instead can also mark, tap and scribe the plate for welding layout marking.

FEATURES:

PUNCHING UNITS

The P lines are equipped with three selectable punches having full force on the entire stroke. A self-adjustable clamping system keeps the plate in position avoiding stripping during punching.

DRILLING UNITS

A max 19 kW drilling head is available on the punching lines. The plate drilling lines is instead supplied with a direct drive high-speed 27 kW drill head with 8 positions automatic tool-changer.

MARKING

Marking of parts is possible with marking tool, mounted in place of one punch, or with disc type marking unit for the plate drilling model.

SUPPORTING TABLE

A roller balls coordinate table is supporting the workpiece during processing offering easy repositioning.

ADVANTAGES

•Multi-tasking lines capable to carry out most common operations required in the steel construction industry.
•Simple but efficient solution with reduced footprint for easy installation.
•Automatic zero reference unit for accurate measurement.
•Clever self-adjustable clamping system to always suit the plate thickness.
•Remote diagnosis is possible through a network connection that allows our service team to perform routine checks.
