Work platform SOFIT-Z3
suspendedfor wind turbinepersonnel

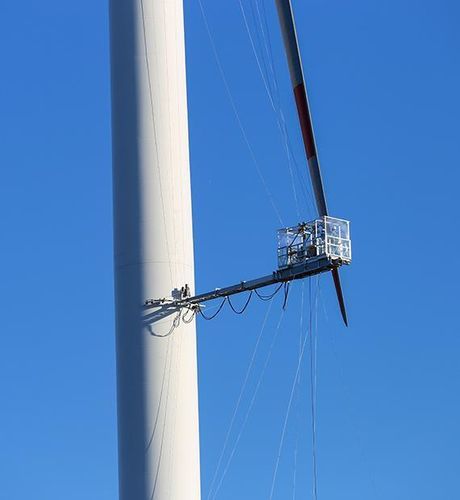

Work platform - SOFIT-Z3 - Ficont Industry (Beijing) Co., Ltd. - suspended / for wind turbine / personnel
Work platform - SOFIT-Z3 - Ficont Industry (Beijing) Co., Ltd. - suspended / for wind turbine / personnel
Work platform - SOFIT-Z3 - Ficont Industry (Beijing) Co., Ltd. - suspended / for wind turbine / personnel - image - 2
Work platform - SOFIT-Z3 - Ficont Industry (Beijing) Co., Ltd. - suspended / for wind turbine / personnel - image - 3
Work platform - SOFIT-Z3 - Ficont Industry (Beijing) Co., Ltd. - suspended / for wind turbine / personnel - image - 4
Add to favorites
Compare this product

Characteristics

Function
work
Type
suspended
Applications
personnel, manned, for wind turbine
Other characteristics
electric, long-range, omnidirectional
Load limit

350 kg
(772 lb)

Description

Overview
  • Electric retractable anchor-less maintenance unit engineered for large megawatt wind turbine blade maintenance; enables vertical lifting, horizontal extension and multi-angle transposition to reach service points without tower anchoring.
  • Compact, stable structure designed for easy transfer and transport to improve on-site safety and maintenance efficiency.
  • Manufacturer with over a decade of experience in suspension proximity equipment, owning independent IP and multiple international certifications and test reports.
  • On-site assembly guidance, lifting training and documented work procedures available from manufacturer.


Key features
  • Automatic leveling system with anti-tilt function for stable operation.
  • Horizontal extension range: 1–18 m; horizontal swing maintenance range: ±15°.
  • Flexible work platform allowing 360° omnidirectional displacement around the blade.
  • Designed for overall transportation without disassembly for rapid site transfer.


Product details
  • Electric drive support system: extension/contraction range 1–18 m to access any blade position, reducing manpower and materials.
  • Three sets of sponge wall rollers: protect the blade surface and ensure platform adhesion during operations.
  • Tower clamping device: expands and clamps the tower tube at the required position to stabilize the platform during horizontal displacement.
  • Configured for lifting, horizontal expansion and multi-angle transposition maintenance close to the blade; supports safe, stable operation and convenient transport.


Specifications (SOFIT-Z3)
  • Model: SOFIT-Z3
  • Brand: 3S Lift
  • Function: Blade maintenance platform for large megawatt wind turbine blades; anchor-less electric retractable drive support system
  • Rated weight (platform): 350 Kg
  • Platform dimensions: 5.8 m × 2 m × 2.7 m
  • Travel speed: 9 m/min
  • Horizontal extension length: 1–18 m (customizable)
  • Horizontal swing maintenance range: ±15°
  • Wire rope diameter: 9.1 mm (Min. breaking tension: 62 kN)
  • Lifting point load: > 17,500 N
  • SafeLock model: SL3 (3 sets)
  • Lifting hoist: Model C700 (3 units); rated lifting force 700 kg
  • Rated power examples: 1.8 kW / 7 kW (400 V) depending on configuration; other variants available
  • Self-weight example: SOFIT-Z3 unit 1300 kg
  • Capacity: typical example 3 people
  • Protection: three sets of sponge wall rollers to protect blade
  • Tower clamping device for platform stabilization during horizontal displacement
  • Transport: designed for overall transportation without disassembly
  • Compliance: CE where indicated


Other model specifications shown on page
  • SOFIT-11 — Rated load: 240 Kg; Speed: 9 m/min; Rated power: 1.5 kW; Self-weight: 200 Kg; Power supply: 400 V/690 V 3-phase; Dimensions: 1.5 × 0.7 × 1.1 m
  • SOFIT-W3 — Rated load: 600 Kg; Speed: 9 m/min; Rated power: 5.4 kW; Self-weight: 800 Kg; Power supply: 400 V/690 V; Outside/Inside dims example: Outside 5.2 × 3.7 m / Inside 3.6 × 1.2 m (customizable); CE compliant
  • SOFIT-22 — Rated load: 280 Kg; Speed: 9 m/min; Rated power: 3 kW; Self-weight: 240 Kg; Power supply: 400 V/690 V; Dimensions: 2 × 0.7 × 1.1 m; CE/UL where indicated


Technical specifications
  • Model (commercial): SOFIT-Z3
  • Brand: 3S Lift
  • Function: Blade maintenance platform for large megawatt wind turbine blades; anchor-less electric retractable drive support system
  • Rated weight (SOFIT-Z3): 350 Kg
  • Platform dimensions (SOFIT-Z3): 5.8 m × 2 m × 2.7 m
  • Travel speed: 9 m/min
  • Horizontal extension length: 1–18 m (customizable)
  • Horizontal swing maintenance range: ±15°
  • Wire rope diameter: 9.1 mm (Min. breaking tension: 62 kN)
  • Lifting point load: > 17,500 N
  • SafeLock model: SL3 (3 sets)
  • Lifting hoist: Model C700 (3 units); rated lifting force 700 kg
  • Rated power variants: 1.5 kW / 1.8 kW / 3 kW / 5.4 kW / 7 kW depending on model
  • Self-weight examples: SOFIT-Z3 1300 kg; SOFIT-11 200 kg; SOFIT-W3 800 kg; SOFIT-22 240 kg
  • Capacity example: 3 people (Z3)
  • Protection: three sets of sponge wall rollers
  • Tower clamping device included
  • Transport: overall transport without disassembly
  • Compliance: CE (models where indicated); UL where indicated
