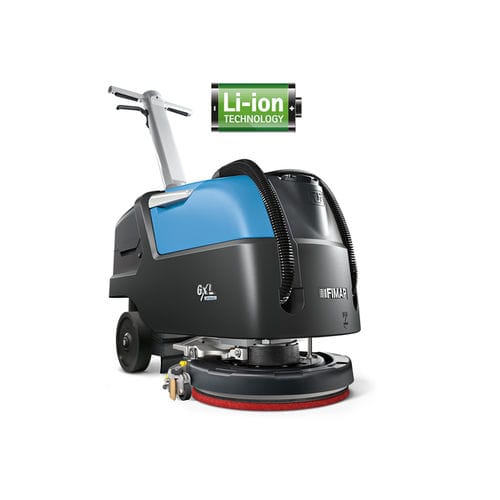

Walk-behind scrubber-dryer GxL series

DCbattery-poweredelectric power

Overview
The Fimap GxL is a compact scrubber dryer designed to deliver the cleaning capabilities of larger machines in confined industrial areas. It is suitable for production, processing and storage environments where concentrated dirt requires effective mechanical cleaning. The GxL family is programmable and compatible with remote fleet control via Fimap Fleet Management (FFM).

Versions

• GxL PRO — disc brush version (semi-automatic traction)
• GxL Bt PRO — battery traction with disc brush
• GxL Orbital PRO — traction version with orbital pad

Key features and selling points

• Compact design for access to narrow and congested work areas
• Available with or without traction; options for disc brush or orbital pad
• Programmable controls and remote management via FFM (My.Machine)
• Durable polyethylene outer body for demanding industrial use
• Manoeuvrable: cleans and dries both forwards and backwards
• Designed for safe operation and straightforward maintenance

Technologies

• ECO Mode — reduces water and detergent consumption and lowers noise
• FFM — Fleet Management system with My.Machine app for remote fleet control
• FES — energy saving technology (up to 35% energy savings)
• Li-ion technology — fast charging lithium-ion battery options for increased availability

Ideal for cleaning

• Factories and production lines
• Processing and storage facilities
• Assembly lines and mechanical workshops
• Supermarkets, kitchens, canteens and restaurants

Technical data (table form)
GxL PRO
Productivity theoretical (up to sqm/h): 1200
Working width (mm): 430
Pressure on the brush (kg): 40
Solution tank (l): 25
Recovery tank (l): 27
Supply/traction (V): 24/semi aut.
Battery run time (up to h): 3
Machine dimensions (L x h x w) (mm): 895 x 1215 x 530
Squeegee width (mm): 516
GVW (kg): 130
Sound pressure level (ISO 11201 – LpA - Eco mode dB(A)): <70

GxL Bt PRO
Productivity theoretical (up to sqm/h): 1720
Working width (mm): 430
Pressure on the brush (kg): 40
Solution tank (l): 25
Recovery tank (l): 27
Supply/traction (V): 24/aut.
Battery run time (up to h): 2
Machine dimensions (L x h x w) (mm): 895 x 1215 x 530
Squeegee width (mm): 516
Sound pressure level (ISO 11201 – LpA - Eco mode dB(A)): <70

GxL Orbital PRO
Productivity theoretical (up to sqm/h): 1720
Working width (mm): 430
Pressure on the brush (kg): 40
Solution tank (l): 25
Recovery tank (l): 27
Supply/traction (V): 24/aut.
Battery run time (up to h): 2
Machine dimensions (L x h x w) (mm): 895 x 1215 x 530
Squeegee width (mm): 516
Sound pressure level (ISO 11201 – LpA - Eco mode dB(A)): <70

Specifications

• Series / model name: GxL
• Working width: 430 mm
• Solution tank capacity: 25 L
• Recovery tank capacity: 27 L
• Brush pressure: 40 kg
• Squeegee width: 516 mm
• Theoretical productivity: 1200–1720 sqm/h depending on model/version
• Supply/traction: 24 V (semi-automatic or automatic traction depending on version)
• Battery run time: up to 2–3 hours depending on model and configuration
• Machine dimensions (L x H x W): 895 x 1215 x 530 mm
• GVW: 130 kg (GxL PRO)
• Sound pressure level (Eco Mode): <70 dB(A)
• Available power sources: mains and lithium-ion battery options (fast recharging)
