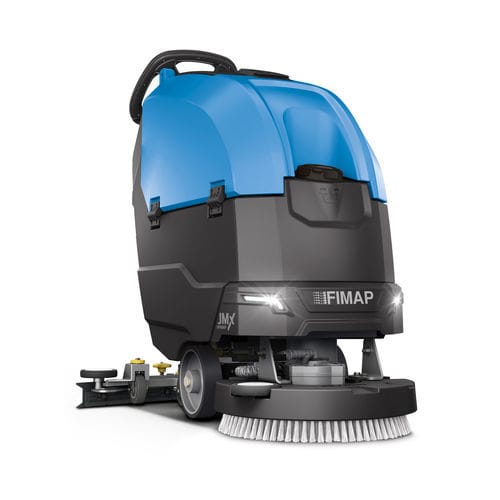

Walk-behind scrubber-dryer JMx series

battery-poweredcompactwater-saving

Overview
JMx is a compact walk-behind scrubber-dryer from the Performance range that concentrates cleaning performance and serviceability into an efficient, easy-to-operate machine. Offered in simple configurations, it addresses operator ergonomics, ease of maintenance and consistent cleaning results while remaining suitable for high-volume tasks.

Drive and brush options
Available in battery-powered semi-automatic (B) and automatic (Bt) drive versions. Plastic brush head with a single disc brush available in 430 mm or 510 mm working widths.

Applications
Suitable for cleaning contractors and large tenders across multiple sectors:

• Large retail: supermarkets and shopping centres
• Industrial kitchens
• Hospitality and hotels
• Sports centres
• Healthcare facilities

Technologies

• ECO Mode — reduces water and detergent consumption and lowers noise
• FFM — fleet management system via the My.Machine app
• FES — energy savings up to 35%
• FNC — reduced noise levels
• Li-ion technology — fast charging for improved machine availability

Highlights

• Two working widths to match operational needs
• Operator-centred design and dashboard ergonomics
• Robust, functional construction for demanding use
• Easy-to-maintain layout to reduce downtime
• Consistent performance through designed touch points
• LED lights for safe operation and transit
• Connectivity with FFM for fleet supervision
• Battery options including Li-ion
• Optional equipment such as HEPA filtration

Technical data — JMx 43 B
Productivity theoretical (up to sqm/h): 1591
Working width (mm): 430
Pressure on the brush (kg): 20
Solution tank (l): 35
Recovery tank (l): 35
Supply/traction (V): 24/semi aut.
Battery run time (up to h): 2
Machine dimensions (L x h x w) (mm): 1145 x 1000 x 590
Squeegee width (mm): 705
GVW (kg): 147,7
Sound pressure level (ISO 11201 – LpA - Eco mode dB(A)): <70

Technical data — JMx 43 Bt
Productivity theoretical (up to sqm/h): 1720
Working width (mm): 430
Pressure on the brush (kg): 20
Solution tank (l): 35
Recovery tank (l): 35
Supply/traction (V): 24/aut.
Battery run time (up to h): 2
Machine dimensions (L x h x w) (mm): 1145 x 1000 x 590
Squeegee width (mm): 705
GVW (kg): 147,7
Sound pressure level (ISO 11201 – LpA - Eco mode dB(A)): <70

Technical data — JMx 50 B
Productivity theoretical (up to sqm/h): 1850
Working width (mm): 510
Pressure on the brush (kg): 21,5
Solution tank (l): 35
Recovery tank (l): 35
Supply/traction (V): 24/semi aut.
Battery run time (up to h): 2
Machine dimensions (L x h x w) (mm): 1185 x 1000 x 590
Squeegee width (mm): 705
GVW (kg): 149,1
Sound pressure level (ISO 11201 – LpA - Eco mode dB(A)): <70

Technical data — JMx 50 Bt
Productivity theoretical (up to sqm/h): 2000
Working width (mm): 510
Pressure on the brush (kg): 21,5
Solution tank (l): 35
Recovery tank (l): 35
Supply/traction (V): 24/aut.
Battery run time (up to h): 2
Machine dimensions (L x h x w) (mm): 1185 x 1000 x 590
Squeegee width (mm): 705
GVW (kg): 149,1
Sound pressure level (ISO 11201 – LpA - Eco mode dB(A)): <70

Characteristics / technical specifications

• Series: JMx
• Drive options: semi-automatic (B) and automatic (Bt)
• Brush type: plastic brush head with single disc brush
• Working widths: 430 mm (JMx 43) and 510 mm (JMx 50)
• Solution tank / Recovery tank: 35 l / 35 l
• Battery supply / traction: 24 V (B = semi-aut., Bt = aut.)
• Battery run time: up to 2 h (depending on battery type)
• Dimensions (L x h x w): 1145–1185 x 1000 x 590 mm (model dependent)
• Squeegee width: 705 mm
• GVW: ~147.7–149.1 kg (model dependent)
• Sound pressure level (Eco mode): <70 dB(A)
• Available technologies: ECO Mode, FFM, FES, FNC, Li-ion
