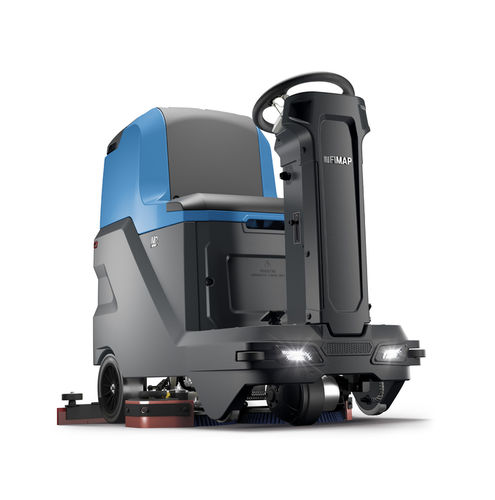

Ride-on scrubber-dryer MR 65-75-85 B

electricDCbattery-powered

Overview
MR is a scrubber-dryer designed to offer an efficient and cost-effective machine for users seeking productivity without complexity. It combines contemporary design with selected technologies to provide accessible performance. Available with disc brushes in three working widths and customisable with optional extras to match application conditions.

Recommended applications

• Industrial facilities
• Supermarkets
• Car parks
• Hospitals and nursing homes
• Airports and stations

HIGHER PERFORMANCE

• Effective on the first pass thanks to adjustable brush pressure up to 60 kg.
• Up to 4 hours continuous operation (battery run time up to 4 h).
• Preset programs: Eco Mode for light cleaning, Dynamic Mode for quick cleaning and Power Mode for increased cleaning power.
• FLR (Fimap Long Range) recycling system doubles the cleaning area per solution volume.

IMPROVED EFFICIENCY

• Sustainable technologies save energy, water and detergent, reducing waste.
• Constant monitoring of CO2 produced to reduce environmental impact.
• HEPA filter retains fine dust from suctioned air before returning it to the environment.
• AQUÆ® technology for chemical-free cleaning.
• Tanks made of recycled plastic to lower production CO2 footprint.

MORE AFFORDABLE

• Contemporary FIMAP design with simplified features focused on practical, useful solutions.
• Simple configuration to add only accessories and options relevant to the sector.

Technologies

• AQUÆ® — Chemical-free cleaning solution.
• ECO Mode — Water and detergent savings and reduced noise levels.
• DYNAMIC Mode — Preset working mode for fast cleaning.
• POWER Mode — Temporary increase in cleaning power.
• FFM — Fleet management system with the My.Machine app.
• FLR — Reduction in water and detergent consumption per cleaning operation (up to 66%) by recycling solution.
• FSS — Saving of up to 50% on water and detergent.
• FWF — Uniform distribution of detergent solution on both brushes.
• FES — Energy savings up to 35%.

Technical data (tables)
MR 65
Productivity theoretical (up to sqm/h): 3900
Tank range (up to sqm): 15.000
Working width (mm): 660
Brush pressure (min - max) (kg): 30 ÷ 45 ÷ 60
Solution tank (l): 105
Recovery tank (l): 110
Supply/traction (V): 24 / aut.
Battery run time (up to h): 4
Machine dimensions (L x h x w) (mm): 1465 x 1210 x 686
Squeegee width (mm): 800
Sound pressure level (ISO 11201 – LpA - dB (A)): < 70

MR 75
Productivity theoretical (up to sqm/h): 4500
Tank range (up to sqm): 15.000
Working width (mm): 760
Brush pressure (min - max) (kg): 30 ÷ 45 ÷ 60
Solution tank (l): 105
Recovery tank (l): 110
Supply/traction (V): 24 / aut.
Battery run time (up to h): 4
Machine dimensions (L x h x w) (mm): 1465 x 1210 x 810
Squeegee width (mm): 900
Sound pressure level (ISO 11201 – LpA - dB (A)): < 70

MR 85
Productivity theoretical (up to sqm/h): 5100
Tank range (up to sqm): 15.000
Working width (mm): 860
Brush pressure (min - max) (kg): 30 ÷ 45 ÷ 60
Solution tank (l): 105
Recovery tank (l): 110
Supply/traction (V): 24 / aut.
Battery run time (up to h): 4
Machine dimensions (L x h x w) (mm): 1465 x 1210 x 895
Squeegee width (mm): 1000
Sound pressure level (ISO 11201 – LpA - dB (A)): < 70

Characteristics / technical specifications

• Series: MR (three working widths / variants: MR 65, MR 75, MR 85).
• Brush system: disc brushes available.
• Adjustable brush pressure up to 60 kg (three preset values: 30 / 45 / 60 kg).
• Solution tank capacity: 105 L; recovery tank capacity: 110 L.
• Supply/traction voltage: 24 V (battery-powered / autonomous traction).
• Battery autonomy: up to 4 hours continuous operation.
• Productivity range: from 3,900 to 5,100 sqm/h depending on model.
• Squeegee widths: 800 mm (MR 65), 900 mm (MR 75), 1000 mm (MR 85).
• Machine dimensions (L x H x W) vary per model (approx. 1465 x 1210 x 686/810/895 mm).
• Sound pressure level below 70 dB(A) (ISO 11201).
• Available technologies include AQUÆ®, ECO / DYNAMIC / POWER modes, FLR recycling, FFM fleet connectivity and efficiency systems (FSS, FWF, FES).
