food product pump / electric / diaphragm / for the food and beverage industry
WIA series

{{requestButtons}}

Characteristics

  • Media:

    for food products

  • Operation:

    electric

  • Type:

    diaphragm

  • Domain:

    for the food and beverage industry

  • Other characteristics:

    mechanical, for wine, metering

  • Flow:

    180 l/h (47.551 us gal/h)

  • Pressure:

    10 bar (145.038 psi)

Description

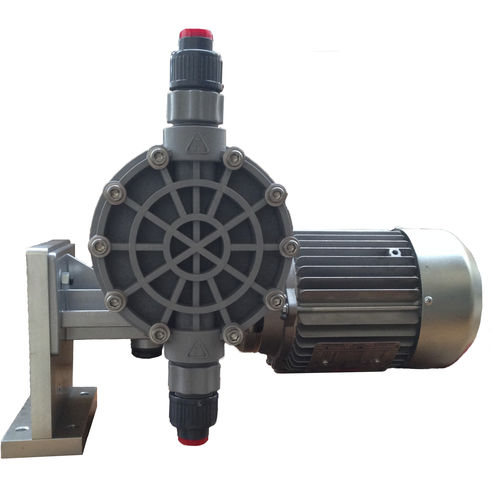

WIA series metering pumps are PTFE mechanical diaphragm, motor-driven, pumps specifically designed for the wine and beverages industry.

Suitable for filter aids used for wine, beer and fruit juices filtration. It is possible to connect a stirrer directly to the pump allowing a convenient installation on diatomaceous earth filters (keiselguhr), because the same pumps motor drives the stirrer without the need of a separate mixer.

Pump performances:
Flow rate: up to 180l/h
Pressure: up to 10 bar

Standard Motors:
3 PH 0.37 kW
1 PH 0.37 kW

Liquid end executions:
PP or SS 316L pumping head, PTFE gaskets and diaphragm, SS 316L valves and seats

Connections:
3/8" Bspf or NPT
UNI or ANSI flanges
