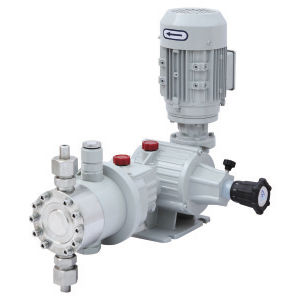

Hydraulic plunger pump FRWA
gearelectriccast iron

hydraulic plunger pump
hydraulic plunger pump
Add to favorites
Compare this product


Characteristics

Type
plunger, gear
Operation
electric
Material
cast iron, PTFE
Other characteristics
membrane
Pressure

900 bar
(13,053 psi)

Description

Flowrate up to 210l/h with single pump head Pressure up to 900 bar Metering accuracy reaches 1% Full API 675 compliant Integrated “Oude” Worm gear pair, low noise, high transmission efficiency, large torque Low maintenance, long service life Plunger and hydraulic diaphragm design Built-in relief valve, compensating valve and limit valve Single and double diaphragm, PTFE or metallic made with rupture indicator 0-100% stepless adjustment of flow Frequency conversion option Cast iron or anodized cast iron casing Various liquid and executions: SS 304L, SS 316L, Hastelloy C, PVC, PVDF; PTFE… Explosion proof motors Special motors UNI/ANSI flanges High viscosity solutions

Catalogs

No catalogs are available for this product.

See all of FIMARS‘s catalogs
