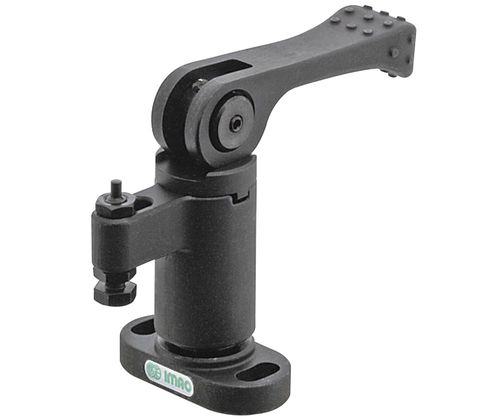

Manually-controlled clamping device QLSWC100VL

workpieceswingminiature

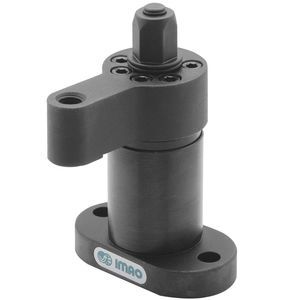

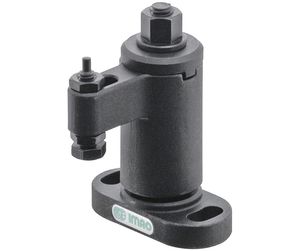

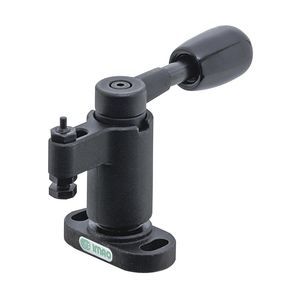

These miniature cam action clamps swing into position and clamp straight down onto the workpiece for direct downward pressure. The arm swings completely out of the way to allow for easy loading and unloading of the workpiece. Ideal for repetitive clamping operations. Comes with a contact bolt that can be reversed for finished or rough surfaces. Mounts from the top with two mounting holes. Part numbers ending with R have a clockwise clamping direction, part numbers ending in L have a counter clockwise clamping direction. The body, washer and spindle are made from 1045 alloy steel. The clamp arm, shaft and handle are made from 4140 alloy steel. Parts are heat treated with a black oxide finish.
