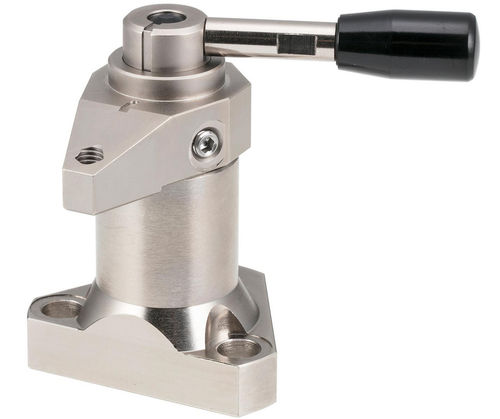

Manual clamping device QLSWW series

mechanicalmanually-controlledspring

Description
Stablelock swing clamps swivel the arm into position and clamp straight down to provide direct downward pressure on the workpiece. They use a spring-loaded ball mechanism to deliver a constant clamping force with positive locking and a tactile "click" at the clamping end point to avoid overtightening. Indication lines on the handle and body show locked/unlocked positions. The arm swings fully clear to allow easy loading and unloading. Part numbers ending in R clamp clockwise; those ending in L clamp counterclockwise. A gripper or screw can be attached to the M6 threaded hole at the arm end (sold separately). Top mounting uses two mounting holes for secure installation.

Materials and finish
Body and lever arm: 1045 alloy steel. Cylinder: 4140 alloy steel. Handle: black phenolic plastic. All metal parts are electroless nickel plated for improved corrosion and wear resistance.

Available variants (table)
Columns: ID | SKU | Part Number | Clamping Direction | D (mm) | D1 (mm) | D2 (mm) | W (mm) | W1 (mm) | H Clamped Position (mm) | H1 Unclamped Position (mm) | R Clamping Force (Lbs) | Operating Load (Lbs) | PN
189677 | QLSWW30R-100 | QLSWW30R-100 | Clockwise | 14 | 30 | 18 | 58 | 42 | 76 | 86 | 224 (112-337) | 18 | (no PN listed)
189676 | QLSWW30L-100 | QLSWW30L-100 | Counterclockwise | 14 | 30 | 18 | 58 | 42 | 76 | 86 | 224 (112-337) | 18 | (no PN listed)

Technical features / specifications

• Series / Model: QLSWW
• Operation: Swing arm swings into position then clamps straight down for direct downward pressure
• Clamping directions: Right-hand (R) = clockwise; Left-hand (L) = counterclockwise
• Clamping mechanism: Spring-loaded balls with tapered surface for positive locking; indication lines on handle/body show locked/unlocked
• Handle: Black phenolic plastic with a "click" feel at clamping end point to prevent overtightening
• Mounting: Top mount using two mounting holes
• M6 threaded hole at arm end to attach gripper or screw (available separately)
• Body and lever arm material: 1045 alloy steel
• Cylinder material: 4140 alloy steel
• Finish: Electroless nickel plating on all metal parts for corrosion and wear resistance
• Example dimensions (QLSWW30R-100 / QLSWW30L-100): D=14 mm, D1=30 mm, D2=18 mm, W=58 mm, W1=42 mm, H (clamped)=76 mm, H1 (unclamped)=86 mm
• Clamping force (example variants): 224 Lbs (noted range 112-337)
• Operating load (example variants): 18 Lbs
