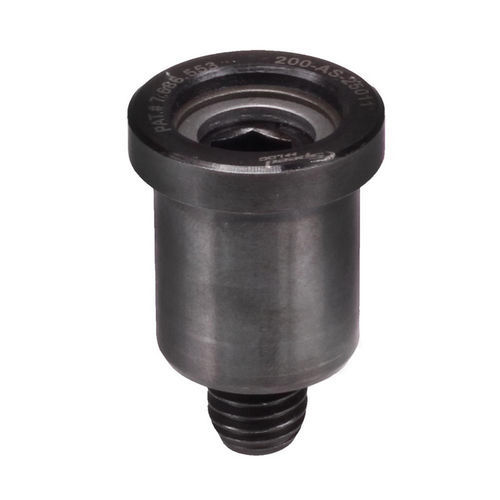

Tapped shank locating pin MPAS series

Overview
These SpeedLoc MPAS flush-mount locating pins are designed for accurate, repeatable locating in tooling, fixturing and assembly operations. The flush head sits level with the fixture plate to permit unobstructed tooling and allow use in production environments. MPAS locators thread into compatible receivers or customer-designed applications. The self-extracting feature prevents binding during removal, preserving alignment accuracy and protecting fixture components. Material and mechanical properties support demanding industrial use: 180,000 psi minimum tensile strength and 140,000 psi minimum yield strength; heat-treated 4340 steel with black oxide finish.

Available Parts (selection)
Header: ID | SKU | Part Number | Plate Thickness (in) ±.005 | Thread | D (in) | D1 (in) | L (in) | H (in) | H1 (in) | K | Max Holding Force (Lbs) | Max Torque (ft/lbs)
129147 | MPAS-13010 | MPAS-13010 | .500 | 1/4-20 | .635 | .512 (13mm) | .40 | .175 | .587 | 3/16 | 2,960 | 13
129149 | MPAS-13011 | MPAS-13011 | .750 | 1/4-20 | .635 | .512 (13mm) | .40 | .175 | .837 | 3/16 | 2,960 | 13
129155 | MPAS-16010 | MPAS-16010 | .500 | 5/16-18 | .786 | .630 (16mm) | .38 | .175 | .587 | 1/4 | 5,390 | 26
129157 | MPAS-16011 | MPAS-16011 | .750 | 5/16-18 | .786 | .630 (16mm) | .38 | .175 | .837 | 1/4 | 5,390 | 26
130765 | MPAS-16012 | MPAS-16012 | 1.000 | 5/16-18 | .786 | .630 (16mm) | .38 | .175 | 1.087 | 1/4 | 5,390 | 26
128973 | MPAS-20010 | MPAS-20010 | .750 | 3/8-16 | .975 | .787 (20mm) | .45 | .250 | .800 | 5/16 | 8,110 | 46
128974 | MPAS-20011 | MPAS-20011 | 1.000 | 3/8-16 | .975 | .787 (20mm) | .45 | .250 | 1.050 | 5/16 | 8,110 | 46
130828 | MPAS-20013 | MPAS-20013 | 1.500 | 3/8-16 | .975 | .787 (20mm) | .45 | .250 | 1.550 | 5/16 | 8,110 | 46
130750 | MPAS-20014 | MPAS-20014 | 2.000 | 3/8-16 | .975 | .787 (20mm) | .45 | .250 | 2.050 | 5/16 | 8,110 | 46
128978 | MPAS-25010 | MPAS-25010 | .750 | 1/2-13 | 1.218 | .984 (25mm) | .55 | .250 | .800 | 3/8 | 14,710 | 113

Features

• Flush-mount head sits level with fixture plate surface
• Threads into receivers or customer-designed applications for versatile use
• Self-extracting design prevents binding and protects alignment accuracy
• Suitable for tooling, fixturing and assembly operations, including production environments
• High holding capacity with consistent repeatability
• Minimum tensile strength 180,000 psi; minimum yield strength 140,000 psi
• Material: heat-treated 4340 steel with black oxide finish

Technical specifications

• Material: Heat-treated 4340 steel
• Finish: Black oxide
• Tensile strength (min): 180,000 psi
• Yield strength (min): 140,000 psi
• Mounting: Flush mount (head lies flush with plate)
• Design: Self-extracting to avoid binding and maintain alignment accuracy
• Available part range: MPAS-13010 through MPAS-25010 (multiple plate thicknesses and thread sizes as listed above)
