Electric press Aero® 325

roller

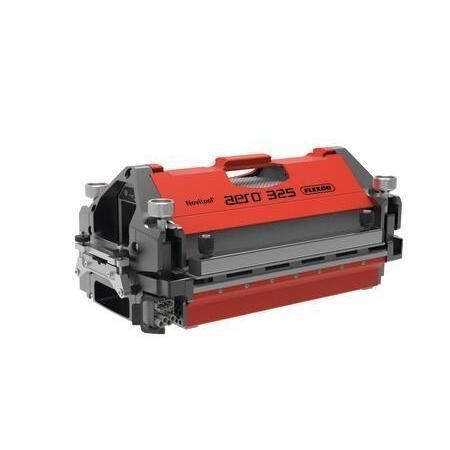

The Novitool® Aero® 325 is a portable splice press engineered for live-roller conveyor belt splicing, integrating IntelliSplice™ controls to provide repeatable splices and data connectivity for recipe management and diagnostics.

Top features

• New touchscreen and D-pad controllers for intuitive input of recipe parameters, loading saved recipes, updating settings, and accessing help.
• Multiple voltage support (including 110 V) so the press can be used at virtually any location on the conveyor by selecting the appropriate power cord.
• Aero Mobile App (iOS and Android) to connect to the press, access the recipe library, create/edit/delete recipes, sync recipes to the press, and upload splice cycle data to the Dashboard.
• New Help section within the interface providing access to instruction manuals, product videos, step‑by‑step tutorials, and other system information.
• Independently programmable top and bottom heating settings plus forced-air cooling on both top and bottom for fast, repeatable cycles.
• On-board recipe storage for consistent, quality splices.
• BLE and Wi‑Fi compliance for supported countries (Canada, Europe, United Kingdom, United States) enabling wireless connectivity and data transfer.

Related items & accessories (examples shown on product series page)

• Power cord options for multiple regions and power ratings (examples include 110 V single-phase, 230 V single- and three-phase, 400/460 V three-phase variants and regional plug types).

Technical specifications

• Model designation: Aero® 325
• Ordering number (example product listing): AERO-325-INTELLISPLICE-PRESS-E
• Item code: 112579
• Belt width: 325 mm (12.8 in)
• Weight: 24.5 kg (54.0 lbs)
• Connectivity: Bluetooth Low Energy (BLE) and Wi‑Fi (country-dependent compliance)
• Controls: Touchscreen + D-pad; on-board recipe library
• Heating: Independently programmable top and bottom heaters with forced air cooling
• Mobile integration: Aero Mobile App (iOS and Android) for recipe management and data upload
• Power: Supports multiple voltages via selectable power cord accessories (various single- and three-phase options available)
