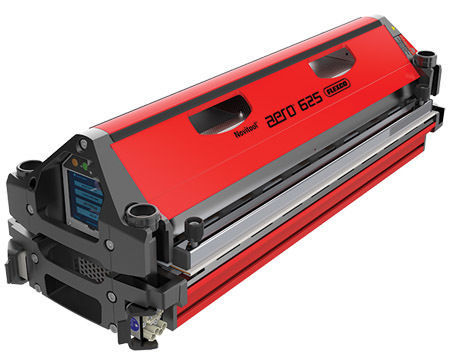

Electric press Aero® series

The Novitool® Aero® Splice Press with IntelliSplice™ Technology is a series of portable splice presses that deliver precise, repeatable endless splices with an optimized heat zone and fast cycle times. The system integrates new user-interface controls and connectivity features to simplify recipe management, data logging, and splice consistency.

Key benefits

• Delivers quality, repeatable splices using a precise heat zone and rapid cooling for reduced downtime and increased production efficiency.
• Expanded connectivity via the Aero Mobile App enables recipe sync and splice cycle log uploads to the Dashboard for remote management.
• User-friendly interface with new touchscreen and D-pad controllers for easy recipe selection, parameter input, and help access.

Features

• New touchscreen and D-pad controllers allow operators to swipe or click through settings, load saved recipes, update settings, or access help materials.
• Aero Mobile App (iOS and Android) provides access to the recipe library: create, edit, delete recipes, sync them to the press, and upload splice cycle data to the Dashboard.
• Built-in Help section in the UI exposes instruction manuals, product videos, step-by-step tutorials, and other system information.
• Independently programmable top and bottom heating settings plus forced-air cooling systems in both top and bottom of the press to support rapid cycle times and high throughput.
• Recipes can be saved on the press to ensure consistent, repeatable splices.
• BLE and Wi‑Fi compliant in Canada, Europe, United Kingdom, and United States.

Available models (ordering number / item code / belt width / weight)

• AERO-325-INTELLISPLICE-PRESS — Item Code: 112580 — Belt Width: 325 mm (12.8 in) — Weight: 25.0 kg (55.0 lbs)
• AERO-625-INTELLISPLICE-PRESS — Item Code: 112581 — Belt Width: 625 mm (24 in) — Weight: 41.5 kg (91.5 lbs)
• AERO-925-INTELLISPLICE-PRESS — Item Code: 112582 — Belt Width: 925 mm (36 in) — Weight: 54.0 kg (119.0 lbs)
• AERO-1225-INTELLISPLICE-PRESS — Item Code: 112583 — Belt Width: 1225 mm (48 in) — Weight: 67.0 kg (147.7 lbs)
• AERO-1525-INTELLISPLICE-PRESS — Item Code: 112584 — Belt Width: 1525 mm (60 in) — Weight: 93.5 kg (206.0 lbs)
• AERO-1835-INTELLISPLICE-PRESS — Item Code: 112585 — Belt Width: 1835 mm (72 in) — Weight: 108.0 kg (238.0 lbs)
• AERO-2135-INTELLISPLICE-PRESS — Item Code: 112586 — Belt Width: 2135 mm (84 in) — Weight: 125.0 kg (275.6 lbs)

Technical characteristics / specifications

• Typical splice throughput: approximately 8 minutes per splice (fast cycle times).
• Top and bottom heating: independently programmable temperature profiles.
• Cooling: forced-air cooling systems in both the top and bottom platen for rapid cooling.
• Recipe management: recipes can be stored on the press and synchronized with the Aero Mobile App and Dashboard for repeatability and traceability.
• Connectivity: BLE and Wi‑Fi support (compliant in Canada, Europe, UK, and USA); mobile app available for iOS and Android.
• User interface: integrated touchscreen and D‑pad controls; built‑in Help section linking to manuals, videos, and tutorials.
• Accessories and replacement parts available (press cloths, press pads, power cords, workshop stand, umbilical extension cables, etc.) corresponding to each model width.
