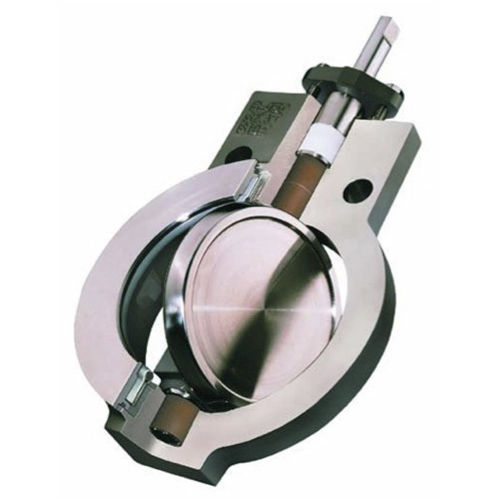

High-performance valve Big Max BX2001
butterflyflow controlshut-off

high-performance valve
high-performance valve
Add to favorites
Compare this product

Characteristics

Type
butterfly
Function
shut-off, flow control
Media
for water, for oil, for chemicals, petroleum, for gas
Body
double-offset, PFA-lined
Applications
chemical, for the petroleum industry, high-precision
Other characteristics
high-performance, injection
Pressure

Max.: 40 bar (580.2 psi)

Min.: 10 bar (145 psi)

DN

Max.: 900 mm (35.433 in)

Min.: 50 mm (1.969 in)

Description

The Durco Big Max BX2001 high-performance, all-purpose valve is designed for precise throttling control or on-off service with lighter weight piping systems and less expensive, energy-efficient actuators. Industry Sectors Basic (Organic & Inorganic) Specialty (Fine & Consumer) Petrochemicals Desalination Downstream Processing Design Range Size Range: DN 50 to 900 NPS 2" - 36" Pressure Class Range: PN 10 to 40 Class 150 & 300 Seating Material: Soft and Metal Features and Benefits Broad application versatility via numerous design options: wafer and lug bodies; standard PFA, optional UHMWPE, fire-sealed, Apex® and TriFlex™ seated versions; and multiple packing options Reduced fugitive emissions through triple-leak protection of primary stem seal plus two optional secondary seals Increased capacity and improved flow control with low-profile, double-offset disc Improved personnel and plant safety per adherence to API 609 criteria for safe, reliable anti-blowout protection
