Pneumatic calibration pump 700HPPK

for pressure generationhigh-pressure

Overview
The Fluke Calibration 700HPPK pneumatic test pump kit generates and finely adjusts pneumatic pressures up to 21 MPa (3000 psi) without external gas cylinders. It supplies pressure to devices under test (DUT) such as transmitters, controllers and digital or analog gauges. Designed for laboratory and field use, the kit is lightweight, portable and stable on a variety of surfaces.

Key features

• Generates and adjusts pneumatic pressures up to 21 MPa (3000 psi)
• Portable design with collapsible feet, built-in handle and canvas carrying case
• Reaches full-scale pressure in ~20 seconds into a 10 cm3 volume
• Detachable pressure adjustment manifold for bench and field use; allows isolation and venting
• Swivel 1/4 NPT female reference gauge connector for quick gauge changes without PTFE tape
• Includes 2 m pressure hose and assorted fittings for broad connectivity
• In-line desiccant and filter systems to protect against DUT contamination

Included with 700HPPK (example contents)

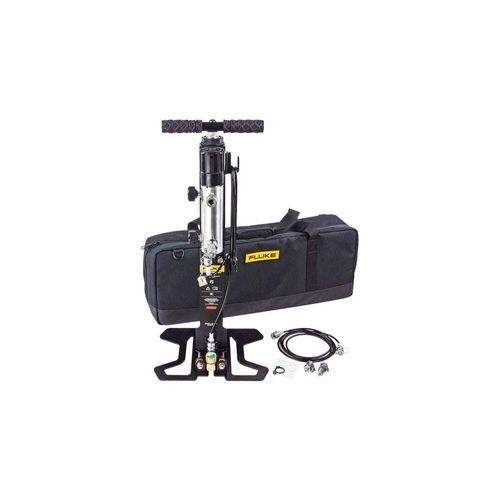

• High-pressure pump/comparator
• Canvas carrying bag
• High-pressure pneumatic quick service kit (seals)
• Dry Pac desiccant refill
• Silicone grease
• High-pressure hose (2 m)
• Test port adapters (NPT, BSP, MET as applicable)

Notes on use
The kit contains a calibration manifold and a high-pressure pump to generate and fine-tune pressures. A separate model (700HPP) provides the high-pressure source without the manifold. The 700HPPK is intended for calibration technicians, test engineers and instrument technicians in industries such as natural gas transmission and distribution, process, aerospace and defense.

Specifications (summary)

• Maximum working pressure: 21 MPa (3000 psi)
• Full-scale generation time (10 cm3): ~20 s
• Fine adjustment resolution (700HPPK): 0.05% of reading
• Maximum leak rate (700HPPK, isolation valve closed): 0.01% of reading
• Weight: 700HPP ~5.5 kg; 700HPPK ~7.2 kg
• Reference gauge connection: 1/4 NPT quick connect
• Inlet contamination protection: desiccant filter
• DUT protection filter (700HPPK): 100 micron
• Dimensions (700HPPK): 66 cm x 30.5 cm x 13 cm
• Supplied test port adapters: NPT 1/8, 1/4; BSP 1/8, 1/4; MET M14, M20, 1/4 NPT
