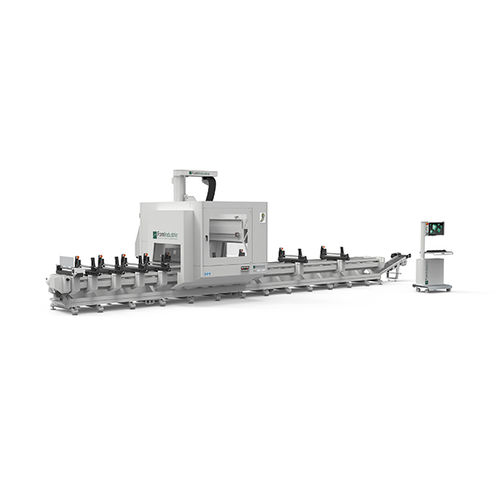

5-axis machining center AXEL 5

horizontalfor steelfor aluminum

Overview
The AXEL 5 is a 5-axis machining centre designed for drilling and milling aluminium and steel profiles. It combines a high-power electrospindle with a compact head and a head-mounted tool magazine to support high material removal rates and flexible production of small to medium batches.

Integrated software
FSTCam4 is the integrated CAM package for extruded aluminium parts. It manages design, job preparation, work lists and execution in a single environment and applies advanced machining strategies to optimise cycle times and ensure part quality.

Key features

• Electrospindle: 22 kW, 24,000 rpm, HSK E63 with liquid cooling
• Super-compact head enabling machining with a 14° undercut
• 20-position tool magazine on the head
• Maximum blade/tool diameter accommodated on head: Ø500
• Sliding pneumatic retractable stop
• Vices with controlled, independent positioning; quick, tool-free jaw and pad adjustment
• Quick and simple work table configuration; supports pendular and multi-piece machining modes

Documentation and resources

• Product technical sheet and product brochure available
• Software catalogue and FSTCam4 documentation

Compatibility and digitalization

• Compatibility with FOM digital tools (e.g. CARL configurator, LOLA solution)
• Industry 4.0 readiness indicated among available options

Technical specifications

• Controlled axes: 5
• Electrospindle power: 22 kW
• Electrospindle speed: 24,000 rpm
• Spindle interface: HSK E63
• Spindle cooling: liquid cooling
• Tool magazine: 20 positions (on head)
• Max. blade/tool diameter (head): Ø500
• Head: super-compact, enables 14° undercut machining
• Stops: sliding pneumatic retractable stop
• Vices: controlled and independent positioning; tool-free jaw/pad adjustment
• Materials: aluminium and steel profiles
• Software: FSTCam4 integrated CAM
• Production modes: pendular machining, multi-piece and pendular machining
