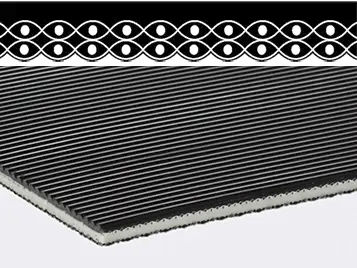

Modular conveyor belt E 8/2 U0/V/R15 LG-SE

polyurethaneindustrialblack

The new E 8/2 U0/V/R15 LG-SE black (art. no. 901004) Transilon type was developed for a modular conveyor system with superior capacity for a baggage conveying system which moves items of baggage at high speeds and over vast distances at lots of international airports. The HighGrip top face coating offers superb grip of the trays filled with suitcases and guarantees excellent conveying even when the system accelerates to speeds of up to 12 m/s. Special impregnation on the belt’s underside ensures superb tracking even in very tropical weather conditions over a long period of time. Applications • Accelerator belt • Drag (twin) belt conveyor systems • High speed conveyor • Inclined conveying of unit goods/containers in wet section Properties/Advantages • High grip conveying side for high acceleration • Flame-retardant according to EN 20340/ISO 340 and ASTM 378/D • Low noise underside fabric Basic data • Top face : HighGrip, LG • Underside : Polyurethane impregnation • Article no. : 901004 • dmin [mm] : 30 • k1% relaxed [N/mm width] : 5.75 • Weight [kg/m²] : 3.5 • Permitted operating temperature [°C] : -10 to +70
