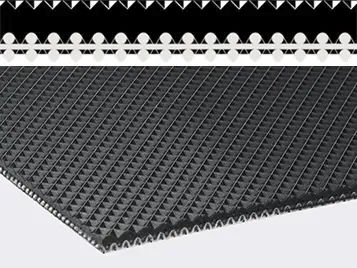

Polyester conveyor belt EL 0/V10 NP-SE

polyvinyl chloridefabricindustrial

The elastic EL 0/V10 NP-SE black 2.25 Transilon type with inverted pyramid patterns is made of a laterally stiff, semi-elastic hybrid fabric with polyester warp and weft threads. It lies very flat and tracks exceptionally straight. Even in the case of wide belts and very short center distances, this special fabric design guarantees superior tracking. In particular, this type can be used on conveyors without take-up units, cross-belt sorters, or as a metering belt. Applications • Conveyors without tensioning device • Cross-belt sorters • Parcel handling • Start-stop belts Properties/Advantages • Semi-elastic 1 ply hybrid fabric of polyester (special fabric construction) • Inverted pyramid pattern on top face, high friction on top face • Very good self-tracking properties, perfect for short center distances and wide belts • Mechanical fasteners possible (dmin = 40 mm) • Tension between 1.5% and 5.0%. When belts are supplied with pretension no take-up necessary (cost saving) • Flame-retardant accord. to EN 20340/ISO 340 and ASTM 378-D Basic data • Top face : Polyvinyl chloride, NP • Underside : Polyester fabric • Article no. : 909231 • dmin [mm] : 24 • k1% relaxed [N/mm width] : 0.3 • Weight [kg/m²] : 2.4 • Permitted operating temperature [°C] : -10 to +70
