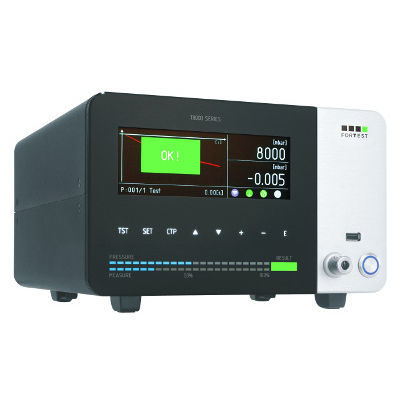

Absolute pressure decay leak tester T8970

continuousautomaticUSB

Continuous measurement for the gas sector. T8970 is a particular leak testing tool with continuous measurement, designed for specific parts with gas ramps, stoves or repair stations. This technology will ensure very fast testing in sequence of the various rings and taps of a gas ramp, starting in automatic mode as soon as you connect to the inbound gas supply and displaying the leaks detected in real time. The "volumetric measurement" function is standard, enabling display of the leak directly in cc/h or cc/min, to meet sector standards. T8970 has an automatic electronic regulator, which enables stable and continuous adjustment of the test pressure, especially in the tap opening phase. Limitless connectivity. The new T8970 equipment includes ports for the USB slave, RS232, RS485, Profinet, EtherNet IP and EtherCAT. Assembly may also include an optional Ethernet port and a 26-pole connector with 4 inputs and 8 outputs, which are completely programmable, for interfacing with the external valves, safety barriers, switches, etc... The front panel has a master USB port assembled on it for connection to a USB key to save the tests conducted, backup/restore parameters and upgrade the firmware. The connection to thermal printers, barcode/data-matrix readers and markers takes place automatically using an internal menu. Always better measurements. The test cycle was further accelerated thanks to processor and coprocessor interaction, maintaining the reliability that has always made ForTest unique. We can say with certainty that T8970 avails of the most advanced measurement section in the world,
