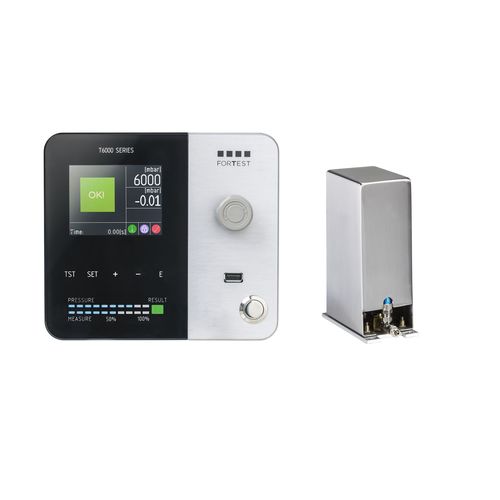

Digital leak tester T6961

differential pressure decayelectro-pneumaticfor packaging

High speed for small volumes. T6961 was designed for ultra fast testing of small parts (pneumatic valves, pressure switches, micro-valves in plastic for medical use, needles, catheters, biomedical components etc.). This characteristics makes it suitable for use on high production automatic machines, allow assembly of the pneumatic unit behind the part being tested, for maximum reduction of the parasite volume. The differential measurement technology also allows detection of extremely low leaks (example medicinal valves: 10 cc/h at 2 bar in 0.1 s. of testing). ll the connections you need. The new T6961 equipment includes ports for the USB slave, RS232 and RS485. Assembly may also include an optional Ethernet port and a 26-pole connector with 4 inputs and 8 outputs, which are completely programmable, for interfacing with the external valves, safety barriers, switches, etc... The front panel has a master USB port for connection to a USB key to save the tests conducted, backup/restore parameters and upgrade tool firmware. The connection to thermal printers, barcode/data-matrix readers and markers takes place automatically using an internal menu. Always better measurements. With the external pneumatic module it will be possible to significantly reduce the volume under test, placing the pneumatic unit close to the part to be tested and therefore guaranteeing a cycle of tests with extremely reduced times. However, it is also available in a "stand alone" version with internal pneumatics. Thanks to the small dimensions of the instrument, the construction of multipoint counters is simplified. For a volume of 3 cc,
