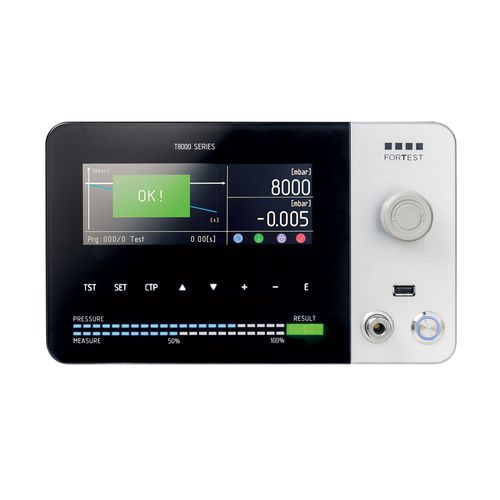

Differential pressure decay leak tester T8060

digitalfor packagingfor bottles

The new video controller “ForTest MMI” brought a superior level of human-machine interaction, thanks to an innovative capacitive panel in tempered glass, around a splendid 6.2” colour display. Parameter programming is faster thanks to the new numerical keyboard integrated in the menu, and the big display makes clearer the view of the test cycle. The main screen also enables interaction with shortcut functions, such as test program change, "smart" test archive menu and locking/unlocking using a password. Limitless connectivity. The new T8060 equipment includes ports for the USB slave, RS232, RS485, Profinet, EtherNet IP and EtherCAT. Assembly may also include an optional Ethernet port and a 26-pole connector with 4 inputs and 8 outputs, which are completely programmable, for interfacing with the external valves, safety barriers, switches, etc... The front panel has a master USB port for connection to a USB key to save the tests conducted, backup/restore parameters and upgrade tool firmware. The connection to thermal printers, barcode/data-matrix readers and markers takes place automatically using an internal menu. Always better measurements. By nature, differential technology enables a measurement sensitivity even better than absolute decay, guaranteeing a decay resolution of 0.1 Pa up to 6 bar testing. The implementation of new pressure sensors, combined with the measurement section with centring technology in windows and double Faraday optical-isolated cage made further improvement of the tool performance.
