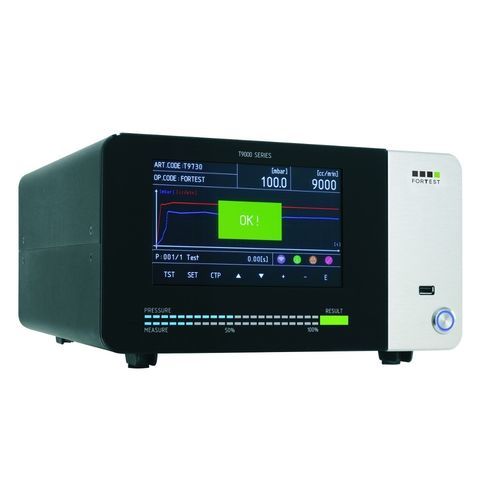

Flow leak tester T9730

for packagingfor valvesfor aeronautical applications

Flow measurement with “Coriolis” sensor Thanks to use of technology based on the “Coriolis” effect, T9730 is among the leaders of flow leak testing in terms of precision and linearity of the measurement. This particular technology was designed to guarantee high performance, short response time and high level of immunity to noise, and is exclusive to the ForTest T9000 series. Other than the classic flow measurement, the tool also has other ways of making it as versatile as possible in its category: ascent and descent ramps, opening tests and burst testing. Another separate function is the "continuous measurement", i.e. a test with infinite times allowing adjustment of the taps and part repairs in real time. The tool also avails of an intelligent pressure adjustment, which uses the automatic pressure regulator to continuously adjust the test pressure based on the variation in load loss, to ensure the reading is as stable and repetitive as possible. Advanced interface. For us, the T9000 series is the most technologically forward of measurement systems, equipped with an advanced interface, useful for analysis and research during the prototyping or pre-series phase, as well as for production line testing. The big, 7” colour display set in a capacitive glass panel allows total interaction with the internal menus and the main screen. The "smart" testing archive contains daily and monthly analysis functions and those specifically for each test program, to keep the level of quality of your products under control. Limitless connectivity. The new T9730 equipment includes ports for the USB slave, RS232, RS485, Profinet, EtherNet IP and EtherCAT.
