- Foshan Chanle Plastic Products Co.,Ltd.
Water hose for solventsfor acidsfoodstuff
Add to favorites
Compare this product
Characteristics
- Use
- for water, for solvents, for acids, foodstuff, for gasoline, for air, for gas, for corrosive fluids
- Material
- PTFE
- Applications
- high-temperature, for chemical applications, for food industry applications, low-temperature, for industrial applications, lubrication
- Norms
- European standard
- Other characteristics
- chemical-resistant, oil-resistant, UV-resistant, PTFE inner liner
- Inner diameter
Min.: 2 mm
(0.079 in)Max.: 25 mm
(0.984 in)- Outer diameter
Min.: 3 mm
(0.118 in)Max.: 29 mm
(1.142 in)- Pressure
4 bar, 5 bar, 6 bar, 8 bar, 15 bar
(58.015 psi, 72.519 psi, 87.023 psi, 116.03 psi, 217.557 psi)- Temperature
Min.: -20 °C
(-4 °F)Max.: 260 °C
(500 °F)- Delivered length
30 m, 40 m, 50 m, 100 m
(98'05" , 131'02" , 164'00" , 328'01" )
Description

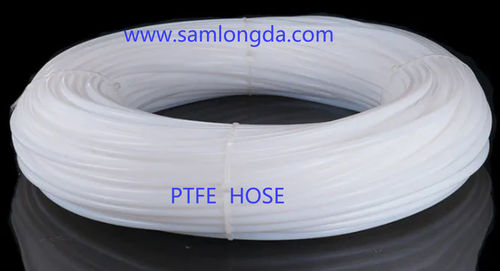

High Performance PTFE Hose, Acid and Alkali ,
high temperature Resistant PTFE hose Pipe.
High and low temperature resistance, can be used in the range of -70ºC~260ºC for a long time. Working pressure 1.0MPa in 23min burst pressure 3.5MPa in 23.
Working pressure 0.5MPa in 100min burst pressure 1.6MPa in 100.
Working pressure 0.25MPa in 200min burst pressure 0.75MPa in 200.
Working pressure 0.15MPa in 250min burst pressure 0.45MPa in 250.
Working medium:Inert gas ,Corrosive fluids,water. *Alkali: excellent
high temperature Resistant PTFE hose Pipe.
High and low temperature resistance, can be used in the range of -70ºC~260ºC for a long time. Working pressure 1.0MPa in 23min burst pressure 3.5MPa in 23.
Working pressure 0.5MPa in 100min burst pressure 1.6MPa in 100.
Working pressure 0.25MPa in 200min burst pressure 0.75MPa in 200.
Working pressure 0.15MPa in 250min burst pressure 0.45MPa in 250.
Working medium:Inert gas ,Corrosive fluids,water. *Alkali: excellent
