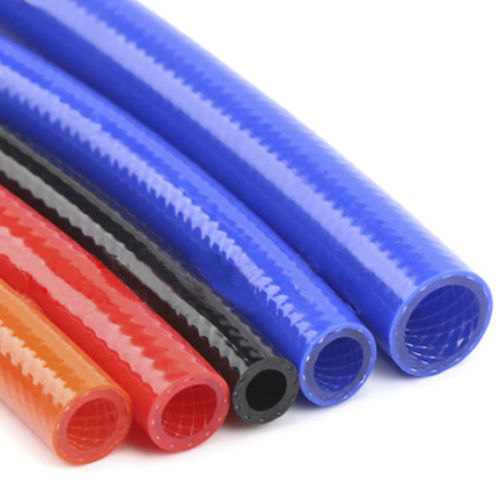

Gas hose PUB0805for compressed airfor oilPU
Add to favorites
Compare this product
Characteristics
- Use
- for gas, for compressed air, for oil
- Material
- PU
- Applications
- high-pressure, conveying, for agricultural applications, for compressors
- Other characteristics
- flexible, smooth, transparent, braided
- Inner diameter
5 mm, 6.5 mm, 8 mm, 10 mm, 12 mm
(0.197 in, 0.256 in, 0.315 in, 0.394 in, 0.472 in)- Outer diameter
Min.: 8 mm
(0.315 in)Max.: 16 mm
(0.63 in)- Pressure
Min.: 15 bar
(217.557 psi)Max.: 20 bar
(290.075 psi)- Temperature
Min.: -20 °C
(-4 °F)Max.: 60 °C
(140 °F)- Delivered length
100 m
(328'01" )
Description
*working pressure to 20bar, Bursting pressure up to 60bar.
*With 100% viginal PU material.
*Smooth and shinny surface !
APPLICATION: For conveying air, gas/oil at pneumatic industry, air compressors, Auto Hose Reel and agriculture with high pressure requirements.
Colors available: Blue, Transparent, etc.
Burst pressure: 60bar
