worm gear / straight-toothed / plastic / ground
A40 series

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product

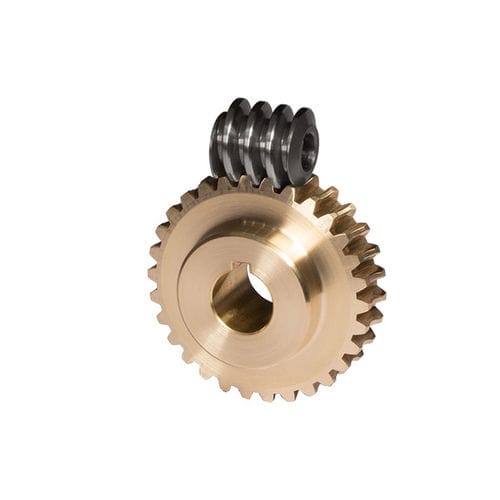

worm gear worm gear - A40 series


  • Type:


  • Teeth:


  • Other characteristics:

    plastic, ground, shaft, steel


Steel, right-hand threaded worm, case hardened HV 620 – 700.
Worm gear made of CuZn37Mn3Al2PbSi-S40 or plastic or laminate 2083 upon request.

The output torque rating (T2) applies to the initial speed of 2800 rpm at the worm (shaft).
The efficiency values (see table in worm gear set catalog) are guidelines. The bearing, lubrication, speed, and installation, in addition to the lead angle, can influence efficiency.

Gears may be combined only with worms of the same axial distance and with the same transmission ratio.
Worms or worm gears from other manufacturers may not be paired with the counterpiece from Framo Morat. It is almost always necessary to adjust the toothing specifications.
All dimensions can be adapted upon request.

Is your desired gear set not available? Request your gear set!
Moderate quantities are usually available from stock, larger quantities are delivered in partial quantities or upon request.

All worms and worm gears stocked right hand only, worm made of case hardened and ground steel (HV
620 - 700). Worm gear made of CuZn37Mn3Al2PbSi-S40 or at request of plastic or Hgw 2083.
