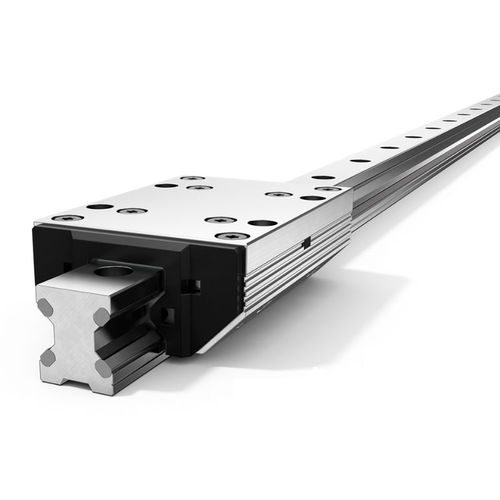

Corrosion-resistant linear guide FDG-K
with ball bearing12 mm15 mm

corrosion-resistant linear guide
corrosion-resistant linear guide
corrosion-resistant linear guide
corrosion-resistant linear guide
corrosion-resistant linear guide
corrosion-resistant linear guide
Add to favorites
Compare this product


Characteristics

Technology
with ball bearing
Range
12 mm, 15 mm, 20 mm, 25 mm, 35 mm, 45 mm
Other characteristics
stainless steel, aluminum, maintenance-free, adjustable, corrosion-resistant, anti-corrosion, double rail
Rail length

Min.: 200 mm
(7.87 in)

Max.: 4,000 mm
(157.48 in)

Rail width

Min.: 37 mm
(1.46 in)

Max.: 120 mm
(4.72 in)

Load

Min.: 620 N

Max.: 6,300 N

Speed

10 m/s
(32.8 ft/s)

Acceleration

40 m/s²
(131.2 ft/s²)

Operating temperature

Min.: -20 °C
(-4 °F)

Max.: 80 °C
(176 °F)

Description

Aluminum roller guides of type FDG are equipped with stainless steel raceways and ball bearings. They offer insensitivity to environmental influences at an affordable price. Franke FDG linear guides are suitable for linear motion tasks in almost all industries. They are particularly convincing in cost-sensitive applications in harsh environments and with reduced demands on load capacity. Rail elements can be manufactured in a length of 200 mm to 4000 mm and, on request, can also be linked endlessly. Characteristics Product type • Cassette and double rail • Pair of roller shoes and pair of single rails Charakteristik • Aluminum roller guide in non-corrosive low cost design • Integrated racewys made of non-corrosive steel • Rollers with ball bearings • Adjustable slide resistance • Vmax 10m / s, acceleration 40m / s2 • Maintenance-free over the entire lifetime Stroke lengths • Infinitely variable from 200 to 4000 mm • in one piece, infinitely coupled for longer
