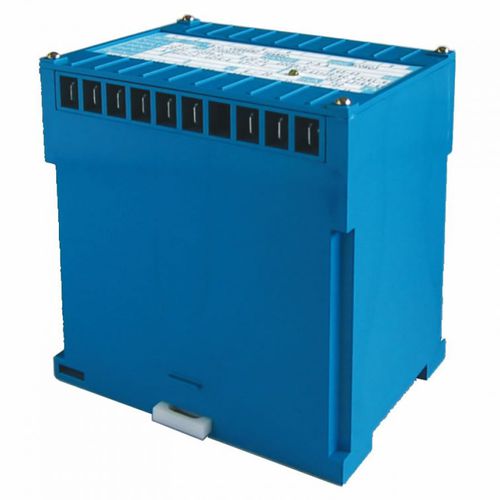

AC voltage transducer MR2V series

DIN rail

TRMS AC Voltage Transducer class 0,2 1 input - 1 Output TRMS AC Voltage Transducer duplicator class 0,2 1 input - 2 outputs TRMS AC Voltage Transducer triplicator class 0,2 1 input - 3 outputs TRMS AC Voltage Transducer - 2 inputs - 2 outputs, class 0,2 TRMS AC Voltage Transducer - 3 inputs - 3 outputs class 0,2 TRMS AC Voltage Transducer phase-phase class 0,2 3 inputs / 3 outputs TRMS AC Voltage Transducer phase-neutral class 0,2 3 inputs - 3 outputs TRMS AC Voltage Transducer - 3 inputs average/sum class 0,2 TRMS AC voltage transducer with output proportional to the sum/average of 3 independent inputs 3 Inputs - 1 Output 3Phase TRMS AC Voltage Transducer phase-phase for inputs average/sum class 0,2 3phase TRMS voltage transducer for phase-phase voltages with output proportional to the sum/average of the inputs. 3 Inputs - 1 Output 3Phase TRMS AC Voltage Transducer phase-neutral for inputs average/sum class 0,2 3phase TRMS voltage transducer for phase-neutral voltages with output proportional to the sum/average of the inputs. 3 Inputs - 1 Output • accuracy class 0,2 • input range 0...120% Un • response time <200msec • residual ripple <1%p.p. • continuous overload 1,2 Un • short-time overload 2 Un (300msec) • reference frequency 50-60 Hz • voltage circuits consumption <0,5VA • operating temperature –10...0...+45...+50°C • storage temperature –30...+70°C • self estinguishing thermoplastic material UL 94-V0 • galvanic insulation alim./ingr./uscite - p.supply/in/out • overvoltage category CAT III 300V, CAT II 600V P.D. 2 • test voltage 4 kV - 50 Hz x 60 s • according to EN 60688
