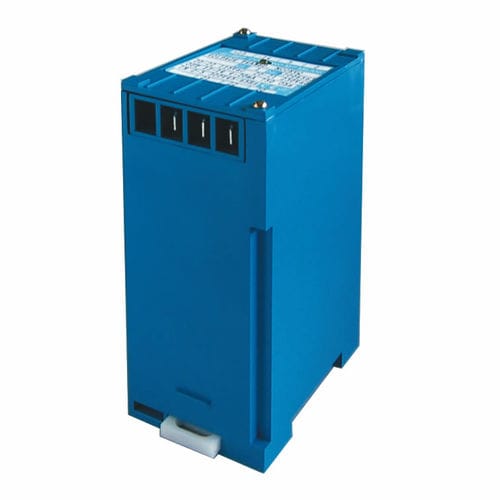

Speed converter MC2TP1DIN rail
Add to favorites
Compare this product
Characteristics
- Type
- speed
- Other characteristics
- DIN rail
Description
RPM Transducer, class 0,2
Input from Proximity NAMUR, PNP, NPN or from Alternator or Dynamo
accuracy class 0,2
input range 5...120% Fn; Un
response time <300msec
residual ripple <1%p.p
continuous overload 1,2 Un
short-time overload 2 Un (1sec)
