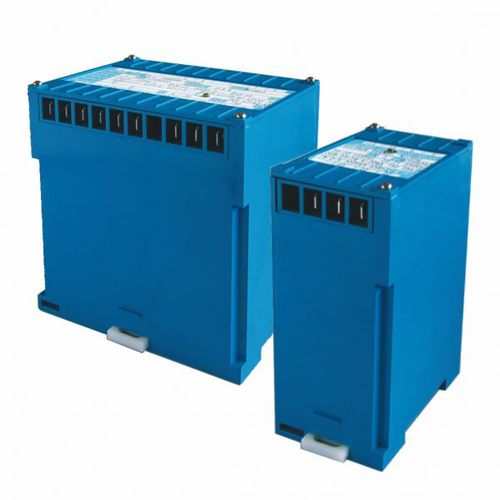

DIN rail current transducer MR2AS series

AC

TRMS AC Current Transducer, class 0,2 1 Input - 1 Output TRMS AC Current Transducer duplicator class 0,2 1 Input - 2 Outputs TRMS AC Current Transducer triplicator class 0,2 1 Input - 3 Outputs TRMS AC Current Transducer - 2 inputs / 2 outputs, class 0,2 3Phase TRMS AC Current Transducer class 0,2 3 Inputs - 3 Outputs TRMS AC Current Transducer for average/sum value of the inputs 3 inputs - 1 output corresponding to the average/sum value of the inputs • accuracy class 0,2 • input range 0...120% In • response time <200msec • residual ripple <1%p.p. • continuous overload 2 ln • short-time overload 20 ln (300msec) • reference frequency 50-60 Hz • current circuits consumption <0,5VA • operating temperature –10...0...+45...+50°C • storage temperature –30...+70°C • self estinguishing thermoplastic material UL 94-V0 • galvanic insulation alim. - p.supply/in/out • overvoltage category CAT III 300V, CAT II 600V P.D. 2 • test voltage 4 kV - 50 Hz x 60 s • according to EN 60688
