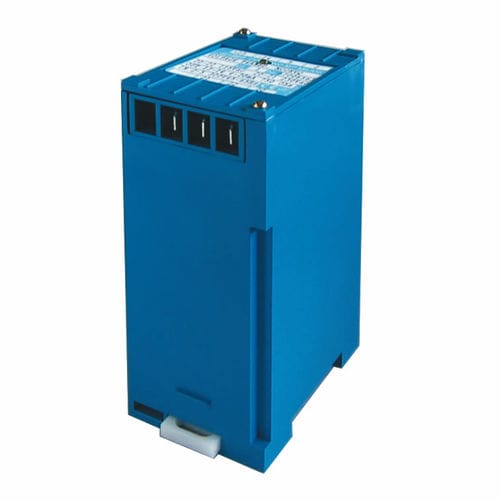

DC current transducer MC2AC Series

DIN rail

DC Current Transducer class 0,2 1 Input - 1 Output DC Current Transducer Duplicator class 0,2 1 input - 2 outputs • accuracy class 0,2 • input range 0...120% In, Un • response time < 200msec • continuous overload 2 In; 1,2 Un • short-time overload 20 In; 2 Un (300msec) • reference frequency 50 or 60 Hz • current circuits consumption 60mV • voltage circuits consumption 100µA 10µA (0,4V < Un < 10V) Ri=100k Ω (Un < 0,4 V) • operating temperature –10...0...+45...+50°C • storage temperature –30...+70°C • self estinguishing thermoplastic material UL 94-V0 • galvanic insulation completo - full • overvoltage category CAT III 300V, CAT II 600V P.D. 2 • test voltage 4 kV - 50 Hz x 60 s • according to EN 60688
