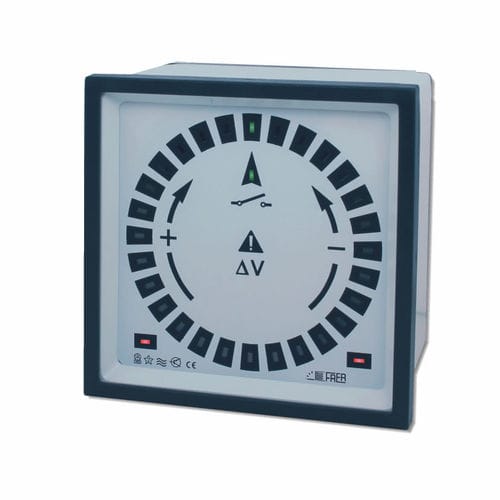

Synchroscope F series

LED Synchroscope, 90° scale, 96x96 LED Synchroscope, 90° scale, 96x96 LED Checking Synchroscope, 90° scale, 96x96 LED Checking Synchroscope, 90° scale, 144x144 • phase+frequency shift display 28 LED • matching condition LED verde lampeggiante flashing green LED • LED indipendenti - indipending • phase delay accuracy 0,1 rad. • frequency shift accuracy ±0,001Hz • rated burden (line) 3 VA • continuous overload 1,2 Vn • instantaneous overload 2 Vn • accuracy 1,5% • overvoltage category CAT III 600V P.D. 2 • operating temperature -10 +50 °C • storage temperature -30 +70 °C • protection for housing IP52 • protection for terminals IP00 • manufactured according to CEI-DIN-VDE-IEC OUTPUT CONTACT RELAY 5A/220V • switch operating time 0,5s • matching indication LED frontale - by LED on front • voltage set-point range ± 2,5÷20 %Vn • phase set-point range ± 5÷25° • frequency set-point range 0,1÷1 Hz • set-point trimmers sul retro - on rear
