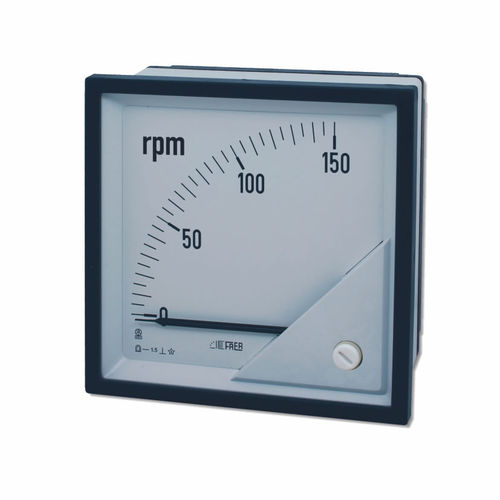

Analog tachometer F72TPXcontactpanel-mount
Add to favorites
Compare this product
Characteristics
- Type
- contact
- Mounting
- panel-mount
- Display
- analog
- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 150 rpm
(942.48 rad.min-1)
Description
Analogue meter for speed measurement, 90° scale, 72x72
• rated burden (AC) 3,5VA (Range 600V)
• rated burden (DC) 1mA (1000Ω/V)
• continuous overload 1,2 Un
• instantaneous overload 2Un
• accuracy 1,5%
• overvoltage category CAT III 600V P.D. 2
• (48x48mm only) CAT III 300V, CAT II 600V P.D. 2
• operating temperature -25 +50 °C
• storage temperature -40 +80 °C
• protection for housing IP52
• protection for terminals IP00
• manufactured according to CEI-DIN-VDE-IEC
