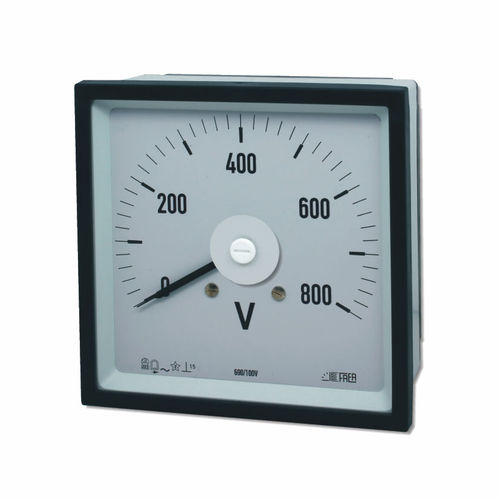

Analog voltmeter A96EVXstationaryAC
Add to favorites
Compare this product
Characteristics
- Type
- analog
- Portability
- stationary
- Voltage
- AC
- Voltage
Max.: 600 V
Min.: 0 V
Description
AC Analogue Voltmeter, 240° scale, 96x96
• rated burden 3,5VA (Range 600V)
• operating frequency 45÷65Hz
• continuous overload 1,2 Vn
• instantaneous overload 2 Vn
• accuracy 1,5%
• overvoltage category CAT III 600V P.D. 2
• (48x48mm only) CAT III 300V, CAT II 600V P.D. 2
• operating temperature -25 +50 °C
• storage temperature -40 +80 °C
• protection for housing IP52
• protection for terminals IP00
• manufactured according to CEI-DIN-VDE-IEC
