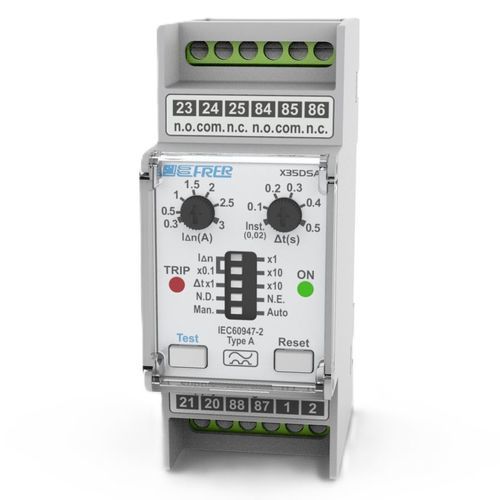

Earth-leakage protection relay X35DSADIN rail
Add to favorites
Compare this product
Characteristics
- Measured/monitored value
- earth-leakage
- Mounting
- DIN rail
- Tripping current
Max.: 30 A
Min.: 0.03 A
Description
The new range of Type A earth leakage relays with separate toroid provides maximum safety and reliable protection in compliance with EN 60947-2 Annex M. Tripping current IΔn adjustable from 30mA to 30A. Settings by means of dip-switch and trimmer protected by sealable front panel. Dual TRIP relay. Connection by means of external closed-core or split-core toroids of the TDC-TDA series.
- Type: Type A earth leakage relay
- DIN modules: 2
- Compliance: EN 60947-2 Annex M
- Tripping current IΔn: Adjustable from 30mA to 30A
- Settings: Dip-switch and trimmer, protected by sealable front panel
- Relay: Dual TRIP relay
- Toroid connection: External closed-core or split-core toroids (TDC-TDA series)
