Earth-leakage protection relay X96DSAgrid and systempanel-mountIEC
Add to favorites
Compare this product
Characteristics
- Measured/monitored value
- earth-leakage
- Applications
- grid and system
- Mounting
- panel-mount
- Norms
- IEC
- Other characteristics
- adjustable
- Tripping current
Max.: 30 A
Min.: 0.03 A
Description

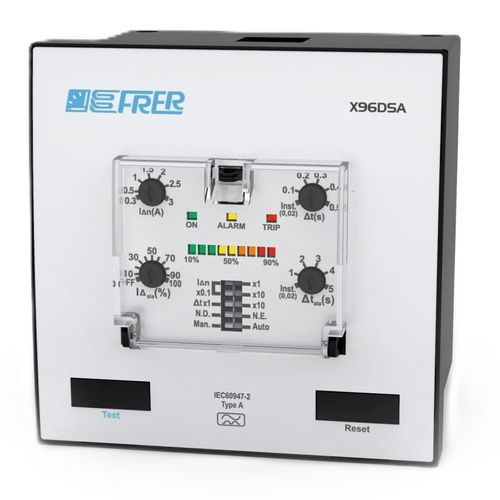

The new range of type A earth leakage relays with separate toroid provides maximum safety and reliable protection in compliance with EN 60947-2 Annex M. Tripping current IΔn adjustable from 30mA to 30A. Settings by means of dip-switch and trimmer protected by sealable front panel. Dual TRIP relay and alarm relay. Colored LED bar for IΔn % indication. Connection by means of external closed-core or split-core toroids of the TDC-TDA series.
- Maximum safety and reliable protection
- Compliant with EN 60947-2 Annex M
- Adjustable tripping current IΔn: 30mA to 30A
- Settings via dip-switch and trimmer, protected by sealable front panel
- Dual TRIP relay and alarm relay
- Colored LED bar for IΔn % indication
- Connection with external closed-core or split-core toroids (TDC-TDA series)
Technical specifications / Features:
- Type: Type A earth leakage relay
- Panel size: 96x96 mm
- Tripping current range: 30mA to 30A
- Settings: Dip-switch and trimmer, sealable front panel
- Relays: Dual TRIP relay and alarm relay
- LED indication: Colored bar for IΔn %
- Toroid compatibility: TDC-TDA series (external closed-core or split-core)
- Standard compliance: EN 60947-2 Annex M
