Single- or double-sided PCB pick-and-place system LMinline

SMTstand-alonein-line

Product overview

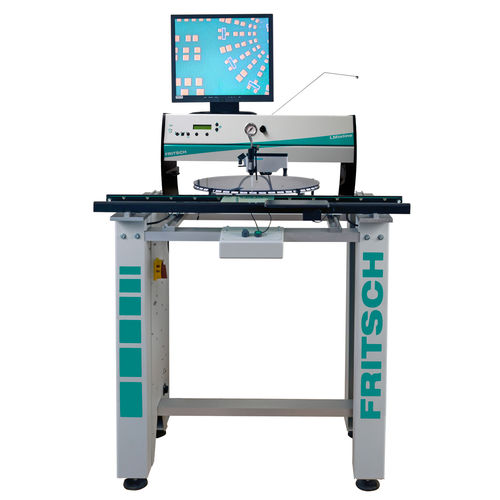

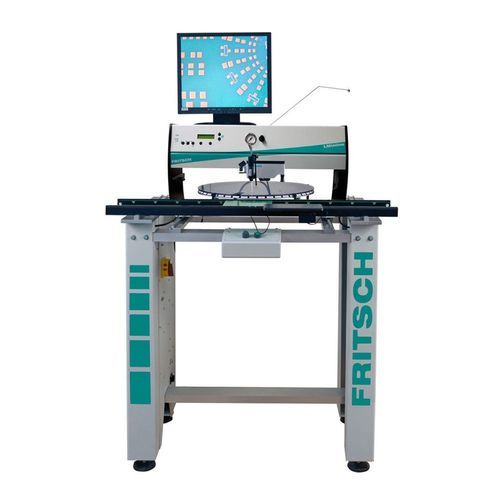

The LMinline is the intelligent combination of the proven LM901 manipulator and the inspection conveyor. Integrated in placeALL® smartLINE or used standalone, it enables manual pre- or rework on PCBs. In standalone mode circuit boards can be dispensed and placed. The PCB is transported automatically on motor-driven belts into the LM assembly area. A finished unit can be forwarded to the next process at the push of a button. Width adjustment allows quick adaptation to board size.

Detailed information

• Details
• Feeder

Technical specifications and product comparison
LMinline | MP904
Dimensions: 1000 x 800 x 1300 mm | Max. dimensions: 1200 x 730 x 480 mm
Max. PCB size: 800 x 300 mm | Max. PCB size: 340 x 240 mm
Max. placement area: 530 x 300 mm | Max. placement area: 340 x 240 mm

Features / technical specifications

• Integration of LM901 manipulator and inspection conveyor
• Operation: used in placeALL® smartLINE for manual pre- or rework on PCBs
• Standalone operation: circuit boards can be dispensed and placed
• Transport: motor-driven belts move PCBs into the assembly area
• Transfer: finished product forwarded to next step by button
• Adjustability: simple width adjustment for board sizes
• Dimensions (LMinline): 1000 x 800 x 1300 mm
• Max. PCB size (LMinline): 800 x 300 mm
• Max. placement area (LMinline): 530 x 300 mm
