SMT pick-and-place machine SM902proXL

semi-automatic

Product Information

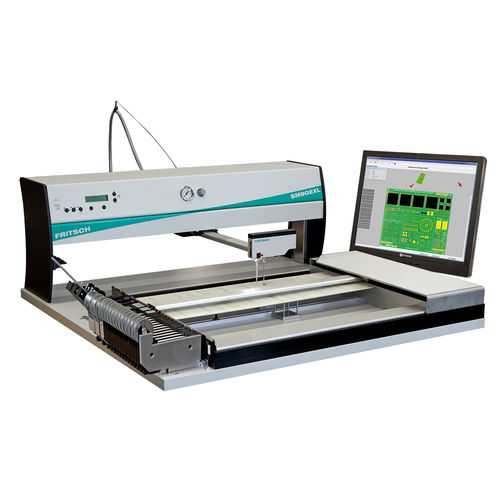

The SM902proXL is a semi-automatic SMD placement system designed for increased assembly output while ensuring precise placement and operator ergonomics. Compared with the SM902, the SM902proXL supports optional motor-driven feeders with LED indicators and an optional automatic dispensing system for glue or solder paste. During placement a guided placement eye automatically moves to the next position and indicates where each component should be placed; the operator inserts the guide-pin into the eye to position the component. Position coordinates can be defined by direct CAD import or manual teach-in.

Detailed Information

• FEEDER
• Software
• Details

Technical Specifications and Product Comparison
SM902 | SM902pro | SM902proXL
Placement rate: 400 - 700 SMDs per hour | 500 - 800 SMDs per hour | 500 - 800 SMDs per hour
Dimensions: 700 x 680 x 340 mm | 700 x 680 x 340 mm | 900 x 880 x 340 mm
Max. PCB size: 550 x 310 mm | Max. PCB size: 390 x 310 mm | Max. PCB size: 590 x 510 mm
Max. placement area: 425 x 310 mm | Max. placement area: 375 x 235 mm | Max. placement area: 575 x 435 mm
PCB thickness: 0.5 mm up to ~4 mm | PCB thickness: 0.5 mm up to ~4 mm | PCB thickness: 0.5 mm up to ~4 mm
Components: chip 0201 up to size 70 x 70 mm | Components: chip 0201 up to size 40 x 40 mm | Components: chip 0201 up to size 40 x 40 mm
Accuracy of motor-driven eye: | Accuracy of motor-driven eye: 0.1 mm | Accuracy of motor-driven eye: 0.1 mm

Characteristics / Technical specifications

• Model: SM902proXL
• Placement rate: 500 - 800 SMDs per hour
• Dimensions (W x D x H): 900 x 880 x 340 mm
• Max. PCB size: 590 x 510 mm
• Max. placement area: 575 x 435 mm
• PCB thickness: 0.5 mm up to ~4 mm
• Components supported: chip 0201 up to size 40 x 40 mm
• Optional motor-driven feeders with LEDs
• Optional automatic dispensing system for glue or solder paste
• Guided placement eye that auto-moves to next placement position; operator inserts guide-pin into eye to place component
• Position definition via direct CAD import or manual teach-in
• Accuracy of motor-driven eye: 0.1 mm
