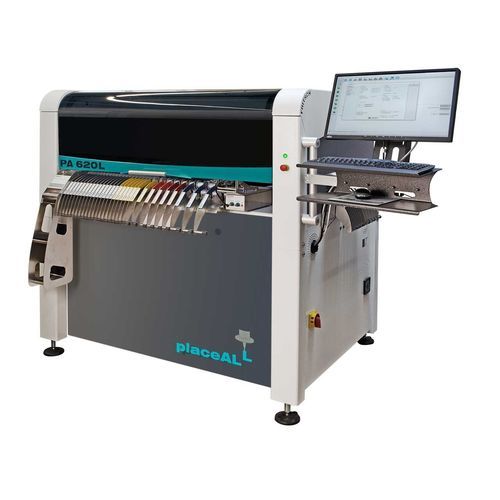

LED pick-and-place machine placeALL®620L

for BGASMTmodular

Product Information
The placeALL®620L is modular and offers a larger placement area than the placeALL®620. It handles a wide component range from 0201 chips up to fine-pitch parts with 0.3 mm pitch and BGAs, enabling flexible assembly of complex projects. With up to 284 feeder positions (configurable) and intelligent software, changeover times are minimised. The entire placement area can be used to assemble large PCBs (up to 910 × 430 mm).

Range of applications
SMT assembly and dispensing for low- to medium-volume production. Throughput: up to 10,500 components/hour (two heads); 6,000 (4600 / IPC9850).

Feeding units

• Feeding from tape, stick, tape stripe, tray and loose components

Component capability

• Chips 0201 up to Fine Pitch 70 × 70 mm, pitch 0.3 mm
• BGAs, µBGAs, CSPs, QFNs
• Custom parts such as connectors, wired THT-LEDs, etc.

Product Comparison

• placeALL®620: 108 slots for 8 or 12 mm single tape FEEDER; max. 208 positions for 8 mm tapes; max. 2 assembling heads; platform 2000 × 1500 × 1600 mm with FEEDER; 10,500 (two heads) / 6,000 (4600 / IPC9850) cph.
• placeALL®620L: 144 slots for 8 or 12 mm single tape FEEDER; max. 248 positions for 8 mm tapes; max. 2 assembling heads; platform 2350 × 1500 × 1600 mm with FEEDER; 10,500 (two heads) / 6,000 (4600 / IPC9850) cph.
• placeALL®620XL: 176 slots for 8 or 12 mm single tape FEEDER; max. 248 positions for 8 mm tapes; max. 2 assembling heads; platform 2350 × 1800 × 1600 mm with FEEDER; 10,500 (two heads) / 6,000 (4600 / IPC9850) cph.

Technical specifications

• 144 slots for 8 or 12 mm single tape FEEDER
• max. 248 positions for 8 mm tapes
• up to 284 feeder positions (configurable)
• max. 2 assembling heads
• max. 2 dispensing heads
• optional dividable machine frame
• max. PCB size: 910 × 430 mm
• platform: 2350 × 1500 × 1600 mm with FEEDER
• standalone or inline operation
• Throughput: up to 10,500 components per hour (two heads); 6,000 (4600 / IPC9850)
