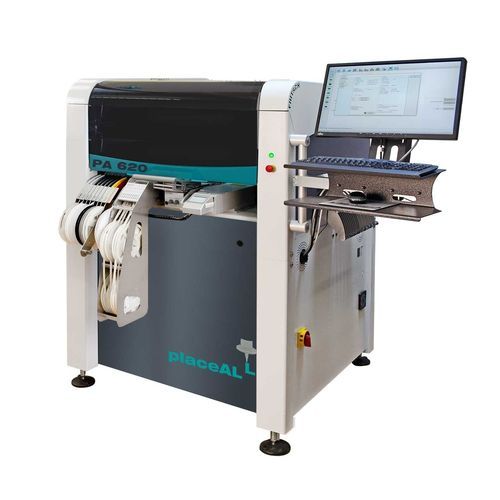

SMT pick-and-place machine placeALL®620

for BGAfor LEDsin-line

Product Information
The placeALL®620 is a modular pick-and-place machine designed for small to medium series production. It handles a wide component spectrum from 0201 chips up to 70×70 mm fine-pitch parts (0.3 mm) and BGAs. The system supports up to 208 feeder positions and features software to minimise changeover time. placeALL®620 units can be used standalone or integrated into inline assembly systems (e.g. smartLINE) compliant with SMEMA.

Range of applications
SMT placement and dispensing for low to medium volume manufacturing, with throughput up to 10,500 components per hour (two heads) and 6,000 components per hour (other configurations: 4600 / IPC9850 reference).

Feeding units
Supports component feeding from tape, stick, tape strip, tray and loose components.

Component capability
From chips 0201 up to fine-pitch parts 70×70 mm (0.3 mm), including BGAs, µBGAs, CSPs, QFNs and custom parts such as connectors and wired THT-LEDs.

Technical Data

• Model: placeALL®620
• Feeder slots: 108 slots for 8 or 12 mm single tape FEEDER (max. 208 positions for 8 mm tapes)
• Maximum feeder positions: up to 208 for 8 mm tapes
• Heads: up to 2 assembling heads; up to 2 dispensing heads
• Supported feeders: tape, stick, tape stripe, tray, loose components
• Component range: chips 0201 up to 70×70 mm fine pitch (0.3 mm), BGAs, µBGAs, CSPs, QFNs, connectors, wired THT-LEDs
• Max. PCB size: 520 × 430 mm
• Platform dimensions with FEEDER: 2000 × 1500 × 1600 mm
• Machine frame: optional dividable
• Operation modes: standalone or inline (SMEMA compatible)
• Throughput: up to 10,500 components/h (two heads); 6,000 (4600 / IPC9850)

Product Comparison (table)
placeALL®620 | placeALL®620L | placeALL®620XL
108 slots for 8 or 12 mm single tape FEEDER | 144 slots for 8 or 12 mm single tape FEEDER | 176 slots for 8 or 12 mm single tape FEEDER
max. 208 positions for 8 mm tapes | max. 248 positions for 8 mm tapes | max. 248 positions for 8 mm tapes
max. 2 assembling heads | max. 2 assembling heads | max. 2 assembling heads
platform 2000 × 1500 × 1600 mm with FEEDER | platform 2350 × 1500 × 1600 mm with FEEDER | platform 2350 × 1800 × 1600 mm with FEEDER
10500 (two heads) / 6000 (4600 / IPC9850) components per hour | 10500 (two heads) / 6000 (4600 / IPC9850) components per hour | 10500 (two heads) / 6000 (4600 / IPC9850) components per hour

Technical specifications

• Model: placeALL®620
• Feeder slots: 108 slots for 8 or 12 mm single tape (up to max. 208 positions for 8 mm tapes)
• Heads: up to 2 assembling heads; up to 2 dispensing heads
• Feeder types supported: tape, stick, tape stripe, tray, loose components
• Component range: chips 0201 up to 70 × 70 mm fine pitch (0.3 mm), BGAs, µBGAs, CSPs, QFNs, connectors, wired THT-LEDs
• Max. PCB size: 520 × 430 mm
• Platform dimensions with FEEDER: 2000 × 1500 × 1600 mm
• Machine frame: optional dividable
• Operation modes: standalone or inline (SMEMA compatible)
• Throughput: up to 10,500 components/h (two heads); 6,000 (4600 / IPC9850)
