LED pick-and-place machine placeALL®620XL

for BGASMTstand-alone

Overview

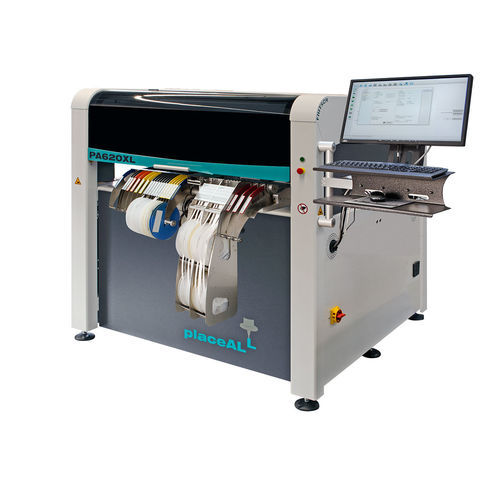

The placeALL®620XL provides the largest placement area in the placeALL® series. Its dimensions accommodate large PCB projects while leaving room for multiple trays and feeders. The machine can be configured with up to 346 feeding positions; when an inline system is integrated in the front area, 262 feeding positions remain available together with space for several trays. An optional split frame is available for specific layouts.

Range of applications
SMT assembly and dispensing for low to medium production volumes. Placement capacity up to 10,500 components per hour (two heads) / 6,000 (4600 / IPC9850).

Feeding units

• Feeding from tape, stick, tape strip, tray and loose components.

Component capability
Chips from 0201 up to Fine Pitch 70 × 70 mm and 0.3 mm pitch; BGAs, µBGAs, CSPs, QFNs and custom parts such as connectors and wired THT LEDs.

Product Comparison (placeALL®620 | placeALL®620L | placeALL®620XL)
placeALL®620 | placeALL®620L | placeALL®620XL
108 slots for 8 or 12 mm single tape FEEDER | 144 slots for 8 or 12 mm single tape FEEDER | 176 slots for 8 or 12 mm single tape FEEDER
max. 208 positions for 8 mm tapes | max. 248 positions for 8 mm tapes | max. 248 positions for 8 mm tapes
max. 2 assembling heads | max. 2 assembling heads | max. 2 assembling heads
platform 2000 x 1500 x 1600 mm with FEEDER | platform 2350 x 1500 x 1600 mm with FEEDER | platform 2350 x 1800 x 1500 mm with FEEDER
10500 (two heads) 6000 (4600 / IPC9850) components per hour | 10500 (two heads) 6000 (4600 / IPC9850) components per hour | 10500 (two heads) 6000 (4600 / IPC9850) components per hour

Technical Data

• 176 slots for 8 or 12 mm single tape FEEDER
• Max. 346 positions for 8 mm tapes
• Max. 2 assembling heads
• Max. 2 dispensing heads
• Optional split frame
• Max. PCB size: 910 x 760 mm
• Platform with FEEDER: 2350 x 1800 x 1500 mm
• Operation modes: standalone or inline
