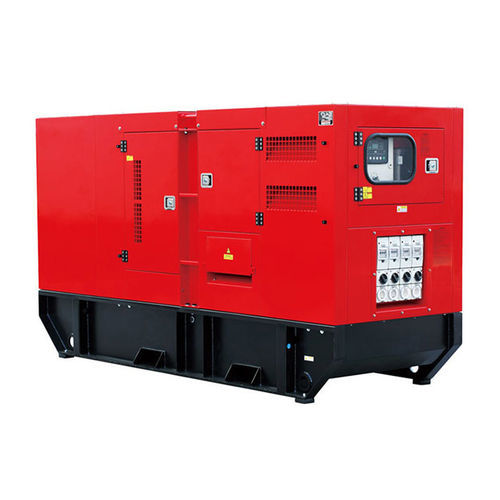

Diesel generator set YANAN - Ⅰstationarywater-cooledsoundproof
Add to favorites
Compare this product
Characteristics
- Motor type
- diesel
- Portability
- stationary
- Cooling system
- water-cooled
- Options and accessories
- soundproof, with cover, low noise level, outdoor
- Power in kVA
Max.: 1,200 kVA
(1,631.55 hp)Min.: 10 kVA
(13.6 hp)- Length
Max.: 5,800 mm
(228 in)Min.: 2,300 mm
(91 in)- Width
Max.: 2,250 mm
(88.6 in)Min.: 1,100 mm
(43.3 in)- Height
Max.: 2,580 mm
(101.57 in)Min.: 1,290 mm
(50.79 in)
Description
Standard Features
Illustrations (items shown)
Dimensions by Power Range
★Specification subject to change without prior note
- Covers full range of silent generator sets (10 kVA up to >1200 kVA)
- Attractive, weather‑proof steel enclosure suitable for outdoor installation
- Multi‑point lifting brackets at top and bottom for safe handling and transport
- Inlet and outlet duct design prevents ingress of debris and dust
- Optimized air intake and exhaust system to ensure stable operation
- Large‑capacity double‑layer fuel tank enabling 12–24 hours of full‑load operation with leak protection
- IP65-rated control box and distribution box
- Residual-current (earth‑leakage) protection in loop circuits for enhanced safety
- International‑standard plug connectors and external terminals for quick, safe connections
Illustrations (items shown)
- Pinout
- Coolant overflow
- Top lifting hook
- File holder
- Plastic screw sleeve
- Protective cover
- Drip leak trays
- Fixed battery bracket
- IP65 electrical box
- Door open support
Dimensions by Power Range
- 10-100 kVA - 2.3×1.1×1.29 m
- 100-200 kVA - 2.8×1.1×1.47 m
- 200-300 kVA - 3.8×1.3×1.85 m
- 300-500 kVA - 4.2×1.5×2.1 m
- 500-800 kVA - 4.8×2.1×2.28 m
- 800-1200 kVA - 5.8×2.25×2.58 m
- >1200 kVA - 20–40 ft container
★Specification subject to change without prior note
